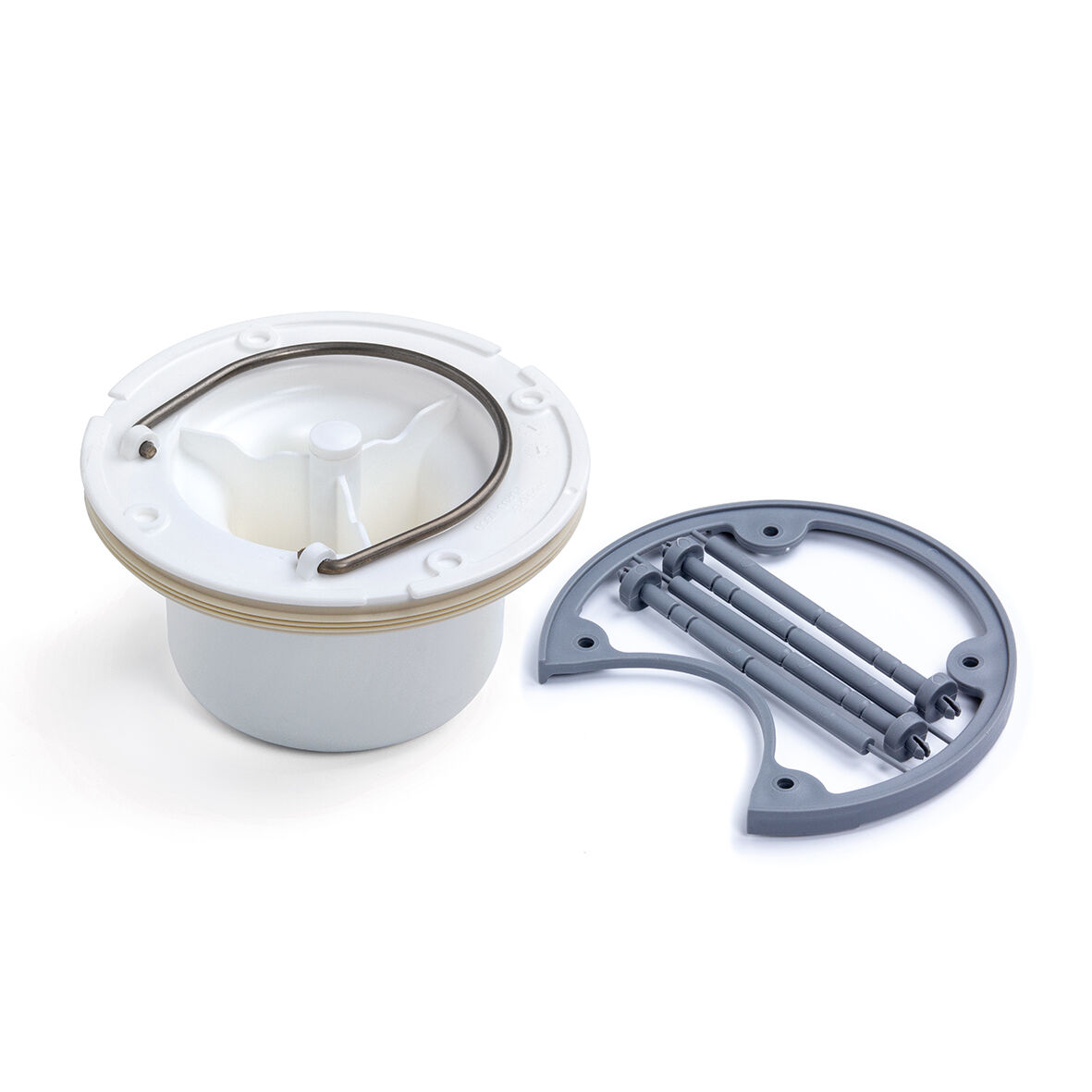

Water trap NOOD with locking ring

Plastic NOOD water trap for most of Purus’ plastic 150mm diameter floor gullies. The NOOD no-odour water trap is a mechanical odour stop designed to close when there is no water flow, thus preventing odours from escaping through the drain, even when dried out. It is therefore suitable for environments which have little or no water supply for longer periods of time. When water is flowing through, the water trap opens automatically. It can be removed from the outlet gully for easy cleaning and maintenance.

Plastic NOOD water trap for most of Purus' plastic 150mm diameter floor gullies. The NOOD no-odour water trap is a mechanical odour stop designed to close when there is no water flow, thus preventing odours from escaping through the drain, even when dried out. It is therefore suitable for environments which have little or no water supply for longer periods of time. When water is flowing through, the water trap opens automatically. It can be removed from the outlet gully for easy cleaning and maintenance.
  • Mechanical odour trap
  • Prevents the drain from drying out
  • Removable for easy cleaning
  • Resistant to backwater on 1m water column
Item Number
7138448
Function
For Ø150 mm floor drains
Item Color
White
Material
PP
Outlet Dimension
150
Version
Odour trap
