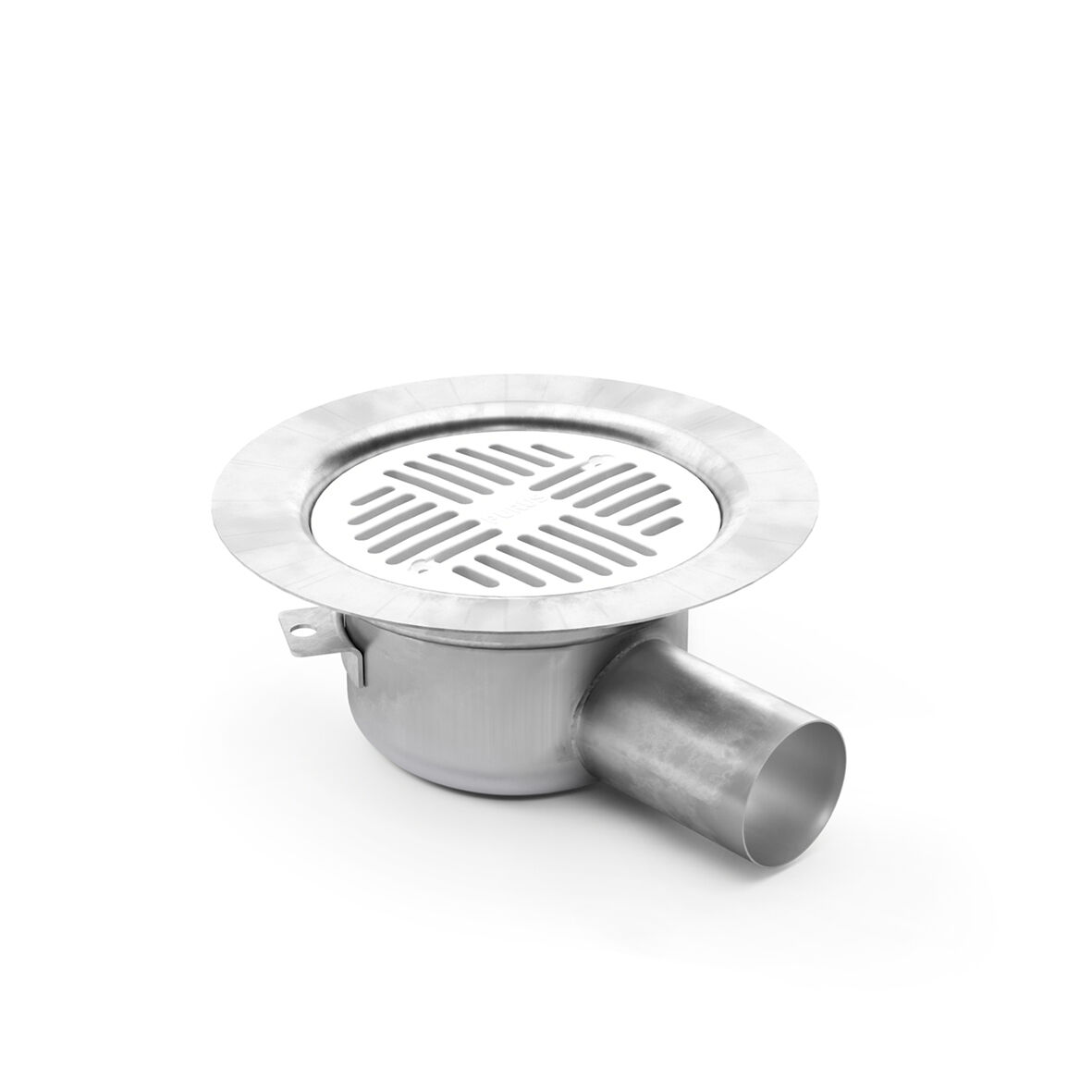

Tor 50 side untrapped floor drain has a 50 mm side outlet and is for installation in concrete joists. The Tor untrapped floor drain comes complete with a clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- Low-built
- High resistance to chemicals
- Corrosion resistant
Item Number
7152481
Floor Construction
Concrete flooring
Floor Covering
Tiles
Function
Side outlet
Item Color
Stainless
Material
PP, Acid-resistant stainless steel 1.4404
Outlet Dimension
Ø50 mm
Pressure Flow Temp
0,5 l/s
Size
Ø130 mm
Surface
Cold rolled (2B)
Version
With plastic grating
