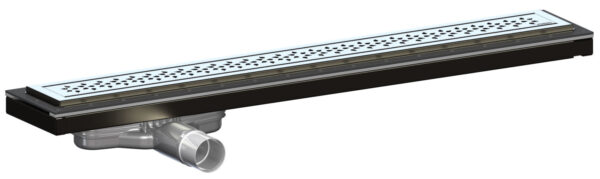

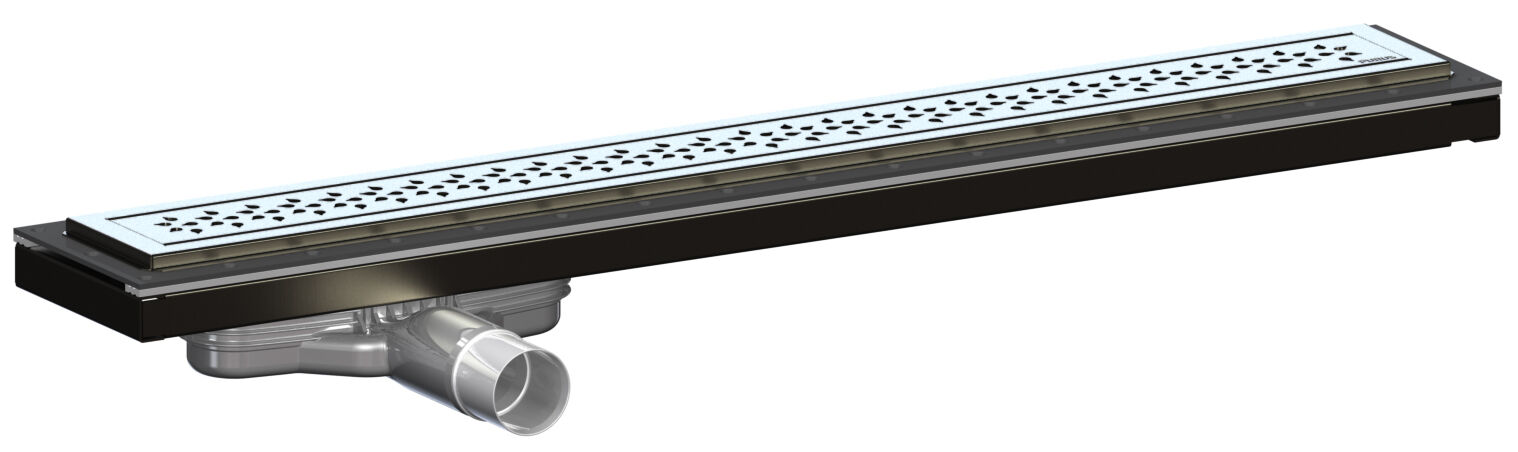

Purus Living 800 Drop 50 low side

The Purus Line Living 800 is a complete floor drain with a Drop grate and Low horizontal 50 mm outlet floor drain. It can be installed in wooden or concrete joists. The Purus Line Living linear drain for tiled floor finishes comes with a removable NOOD water trap, stainless steel patterned Drop grate, 50 mm to 1½” UK adapter for solvent welding and installation kits for both wooden joists and concrete joists. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain.

The Purus Line Living 800 is a complete floor drain with a Drop grate and Low horizontal 50 mm outlet floor drain. It can be installed in wooden or concrete joists. The Purus Line Living linear drain for tiled floor finishes comes with a removable NOOD water trap, stainless steel patterned Drop grate, 50 mm to 1½" UK adapter for solvent welding and installation kits for both wooden joists and concrete joists. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain.
  • Delivered as a complete package with everything required for installation with tiles
  • With Drop design grating
  • NOOD water trap as standard
Item Number
52777
Floor Construction
Concrete flooring
Floor Covering
Tiles
Function
Side outlet, low-rise
Item Color
Grey
Material
PP, ABS, Stainless steel 1.4301
Outlet Dimension
Ø50 mm
Pressure Flow Temp
0,6 l/s
Size
800
Version
With frame and grating
