Purus channel spalte module 75 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is intended for concrete, epoxy and tile floors without a waterproofing membrane. Purus channel spalte module is only 20 mm wide, has a built-in fall of which the height is 75 mm and length 500x500 mm. Purus channel spalte module is delivered with gasket and screw connection for installation but needs to be supplemented with grid depending on the environment and outlet house. The total height with screw joints is 124 mm.
- Only 20mm wide
- Can be customised
- Suitable for environments with heavy load requirements
- Open grate design along the channel, making it easy to clean
- Several connecting pieces along the channel for easy and quick installation

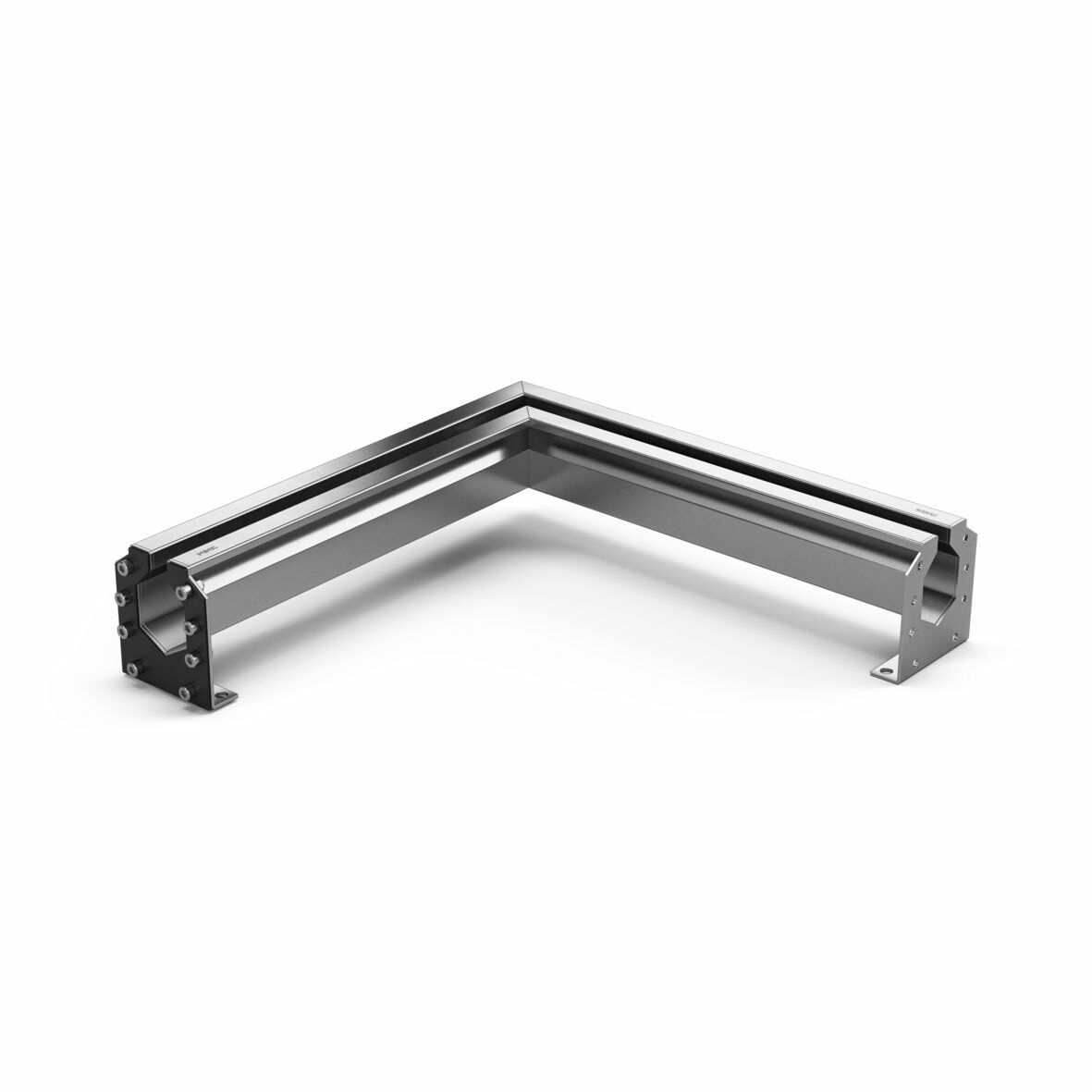

Purus channel spalte module 90 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is intended for concrete, epoxy and tile floors without a waterproofing membrane. Purus channel spalte module is only 20 mm wide, has a built-in fall of which the height is 90 mm and length 500x500 mm. Purus channel spalte module is delivered with gasket and screw connection for installation but needs to be supplemented with grid depending on the environment and outlet house. The total height with screw joints is 124 mm.
- Only 20mm wide
- Can be customised
- Suitable for environments with heavy load requirements
- Open grate design along the channel, making it easy to clean
- Several connecting pieces along the channel for easy and quick installation
Purus channel spalte module 105 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is intended for concrete, epoxy and tile floors without a waterproofing membrane. Purus channel spalte module is only 20 mm wide, has a built-in fall of which the height is 105 mm and length 500x500 mm. Purus channel spalte module is delivered with gasket and screw connection for installation but needs to be supplemented with grid depending on the environment and outlet house. The total height with screw joints is 124 mm.
- Only 20mm wide
- Can be customised
- Suitable for environments with heavy load requirements
- Open grate design along the channel, making it easy to clean
- Several connecting pieces along the channel for easy and quick installation
Item Number
855656
Floor Construction
Concrete flooring
Floor Covering
Concrete/Resin/Tiles
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Size
500x500 mm
Surface
Pickled
Version
20 mm gap, without grate
Item Number
855657
Floor Construction
Concrete flooring
Floor Covering
Concrete/Resin/Tiles
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Size
500x500 mm
Surface
Pickled
Version
20 mm gap, without grate
Item Number
855658
Floor Construction
Concrete flooring
Floor Covering
Concrete/Resin/Tiles
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Size
500x500 mm
Surface
Pickled
Version
20 mm gap, without grate
