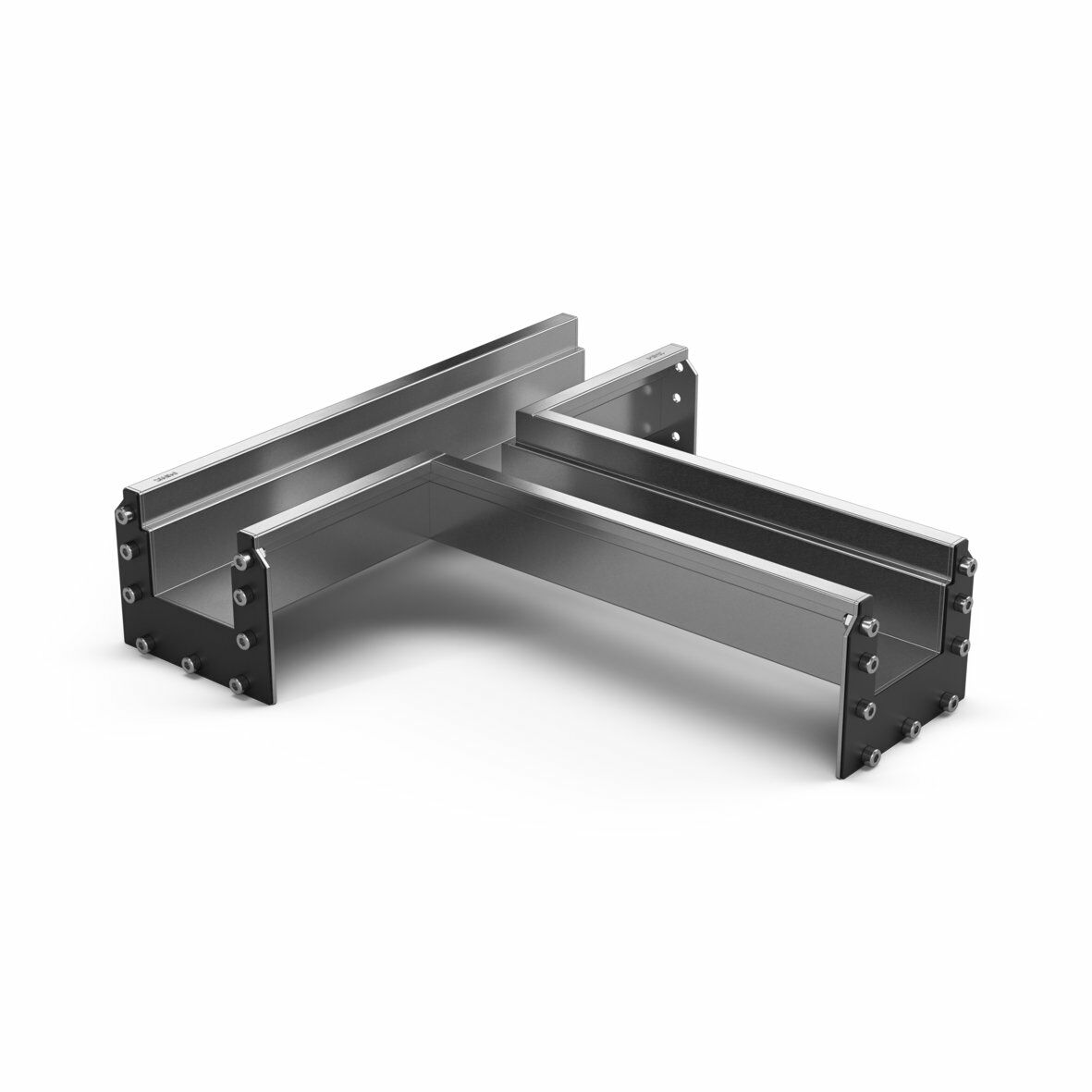

Purus channel 100 modul T-cross 65 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is intended for concrete, epoxy and tile floors without a waterproofing membrane. The floor channel is 100 mm wide and has a built-in fall of which the height is 65 mm and length 500x500 mm. The floor channel is delivered with gasket and screw connection for installation but needs to be supplemented with grid depending on the environment and outlet house. The total height with screw joints is 129 mm.
- Narrow channel with high flow capacity and low installation height
- Hygienic construction
- Can be customised
- Several connecting pieces along the entire channel for quick and easy installation
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 100 modul T-cross 80 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is intended for concrete, epoxy and tile floors without a waterproofing membrane. The floor channel is 100 mm wide and has a built-in fall of which the height is 80 mm and length 500x500 mm. The floor channel is delivered with gasket and screw connection for installation but needs to be supplemented with grid depending on the environment and outlet house. The total height with screw joints is 129 mm.
- Narrow channel with high flow capacity and low installation height
- Hygienic construction
- Can be customised
- Several connecting pieces along the entire channel for quick and easy installation
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 100 modul T-cross 95 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is intended for concrete, epoxy and tile floors without a waterproofing membrane. The floor channel is 100 mm wide and has a built-in fall of which the height is 95 mm and length 500x500 mm. The floor channel is delivered with gasket and screw connection for installation but needs to be supplemented with grid depending on the environment and outlet house. The total height with screw joints is 129 mm.
- Narrow channel with high flow capacity and low installation height
- Hygienic construction
- Can be customised
- Several connecting pieces along the entire channel for quick and easy installation
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Item Number
855709
Floor Construction
Concrete flooring
Floor Covering
Concrete
Function
With slope
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Size
500x500x100
Surface
Pickled
Version
Do not forget grid/grating
Item Number
855710
Floor Construction
Concrete flooring
Floor Covering
Concrete
Function
With slope
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Size
500x500x100
Surface
Pickled
Version
Do not forget grid/grating
Item Number
855711
Floor Construction
Concrete flooring
Floor Covering
Concrete
Function
With slope
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Side/bottom in stainless steel in Ø75/Ø110 mm
Size
500x300x100
Surface
Pickled
Version
Do not forget grid/grating
