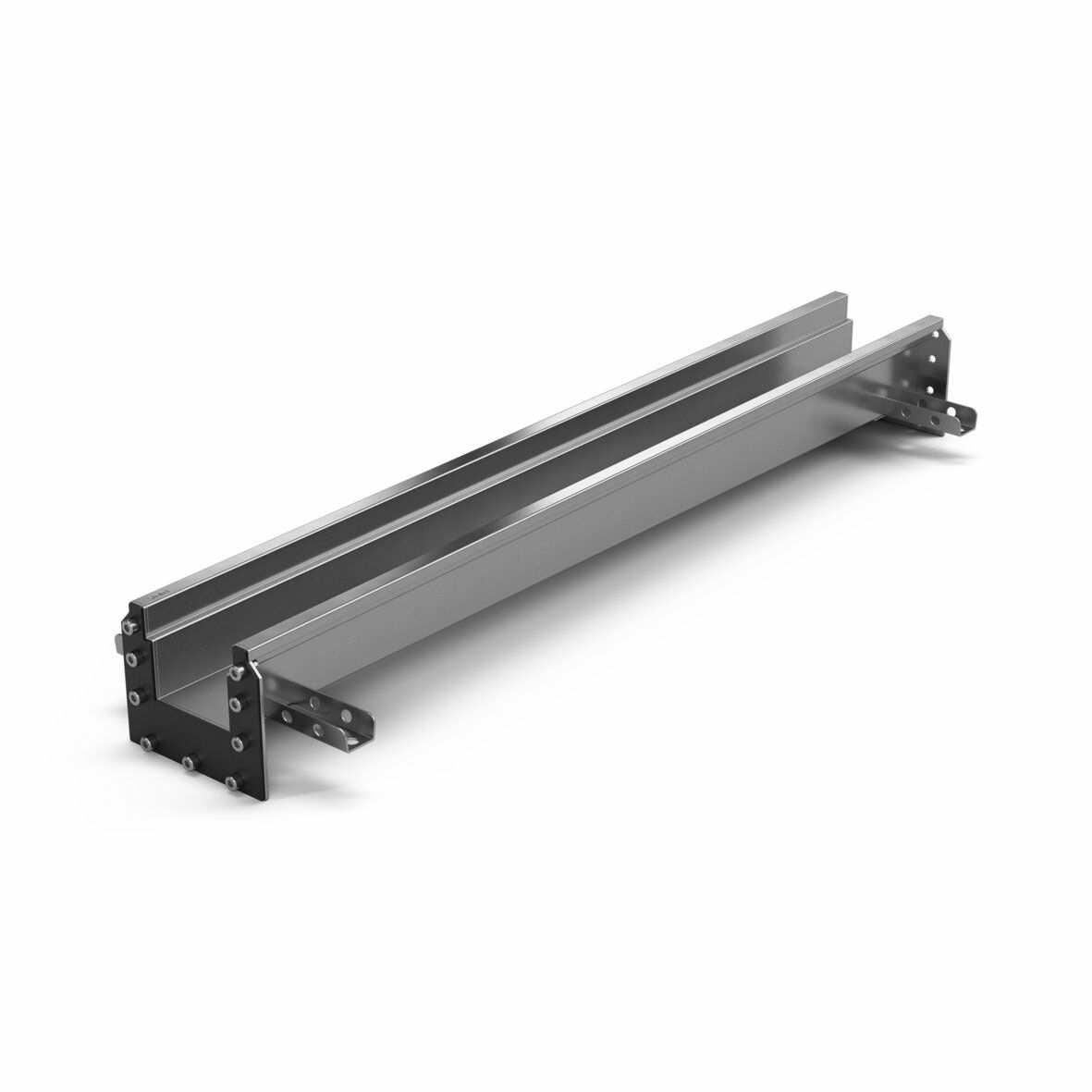

Purus channel 100 modul 50-65 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is intended for concrete, epoxy and tile floors without a waterproofing membrane. The floor channel is 100 mm wide and has a built-in fall of which the height is 50 mm and 65 mm and a length of 1000 mm. The floor channel is delivered with gasket and screw connection for installation but needs to be supplemented with grid depending on the environment and outlet house. The total height with screw joints is 129 mm.
- Narrow channel with high flow capacity and low installation height
- Hygienic construction
- Can be customised
- Several connecting pieces along the entire channel for quick and easy installation
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 100 modul 65-80 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is intended for concrete, epoxy and tile floors without a waterproofing membrane. The floor channel is 100 mm wide and has a built-in fall of which the height is 65 mm and 80 mm and a length of 1000 mm. The floor channel is delivered with gasket and screw connection for installation but needs to be supplemented with grid depending on the environment and outlet house. The total height with screw joints is 129 mm.
- Narrow channel with high flow capacity and low installation height
- Hygienic construction
- Can be customised
- Several connecting pieces along the entire channel for quick and easy installation
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 100 modul 80-95 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is intended for concrete, epoxy and tile floors without a waterproofing membrane. The floor channel is 100 mm wide and has a built-in fall of which the height is 80 mm and 95 mm and a length of 1000 mm. The floor channel is delivered with gasket and screw connection for installation but needs to be supplemented with grid depending on the environment and outlet house. The total height with screw joints is 129 mm.
- Narrow channel with high flow capacity and low installation height
- Hygienic construction
- Can be customised
- Several connecting pieces along the entire channel for quick and easy installation
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Purus channel 100 modul 95-110 is a floor channel made of acid-resistant stainless steel for installation in concrete. The floor channel is intended for concrete, epoxy and tile floors without a waterproofing membrane. The floor channel is 100 mm wide and has a built-in fall of which the height is 95 mm and 110 mm and a length of 1000 mm. The floor channel is delivered with gasket and screw connection for installation but needs to be supplemented with grid depending on the environment and outlet house. The total height with screw joints is 129 mm.
- Narrow channel with high flow capacity and low installation height
- Hygienic construction
- Can be customised
- Several connecting pieces along the entire channel for quick and easy installation
- Suitable for commercial kitchens, hospitals, spas, garages and industrial environments
Item Number
856908
Floor Construction
Concrete flooring
Floor Covering
Concrete
Function
With slope
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Size
1000x100
Surface
Pickled
Version
Do not forget grid/grating
Item Number
856909
Floor Construction
Concrete flooring
Floor Covering
Concrete
Function
With slope
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Size
1000x100
Surface
Pickled
Version
Do not forget grid/grating
Item Number
856910
Floor Construction
Concrete flooring
Floor Covering
Concrete
Function
With slope
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Size
1000x100
Surface
Pickled
Version
Do not forget grid/grating
Item Number
856911
Floor Construction
Concrete flooring
Floor Covering
Concrete
Function
With slope
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Size
1000x100
Surface
Pickled
Version
Do not forget grid/grating
