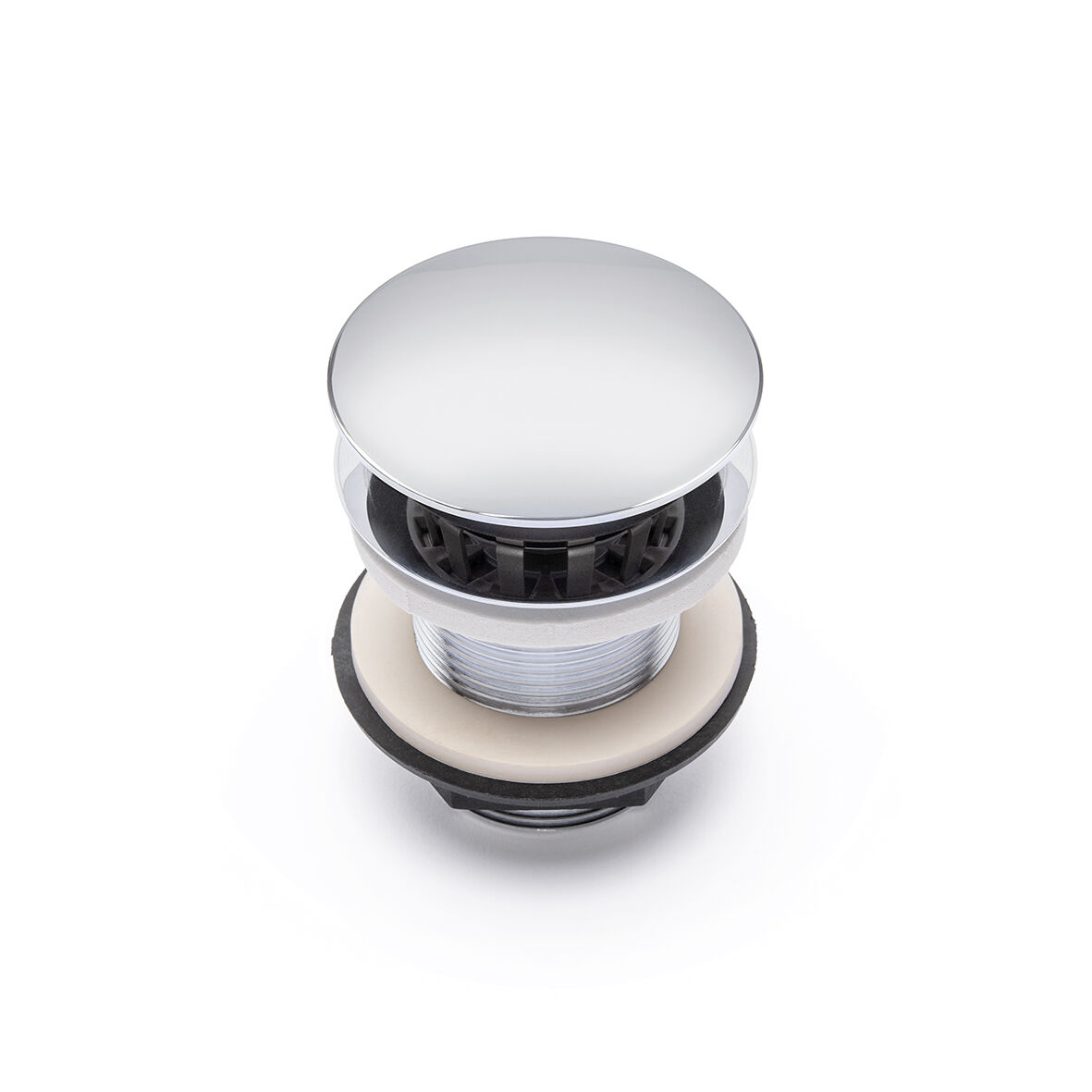

The PUM vertical waste outlet, with a height of 60mm, is a combination of a vertical waste and a water trap for wash basins with G32 connections. The odour barrier (membrane) is integrated in the vertical waste and is positioned under the lid, which can easily be lifted up for in situ cleaning and maintenance. The vertical waste replaces the usual cup-style water trap, saving space underneath the wash basin. It can be combined with floor and wall outlet kits which do not have a conventional water trap. This PUM vertical waste outlet does not have a connection for overflow drains.
- Replaces regular water trap
- Saves space
- Good flow capacity
- Secondary ventilation
- Can be easily cleaned
The PUM vertical waste outlet, with a height of 90mm, is a combination of a vertical waste and a water trap for wash basins with G32 connections. The odour barrier (membrane) is integrated in the vertical waste and is positioned under the lid, which can easily be lifted up for in situ cleaning and maintenance. The vertical waste replaces the usual cup-style water trap, saving space underneath the wash basin. It can be combined with floor and wall outlet kits which do not have a conventional water trap. This PUM vertical waste outlet does not have a connection for overflow drains.
- Replaces regular water trap
- Saves space
- Good flow capacity
- Secondary ventilation
- Can be easily cleaned
Item Number
8573427
Function
To washbasin
Item Color
Chrome
Material
Brass, Silicone, PP, ABS
Outlet Dimension
G32
Pressure Flow Temp
0,6 l/s
Size
H=60 mm
Version
Odour trap
Item Number
8573428
Function
To washbasin
Item Color
Chrome
Material
Brass, Silicone, PP, ABS
Outlet Dimension
G32
Pressure Flow Temp
0,6 l/s
Size
H=90 mm
Version
Odour trap
