Living Tile Insert

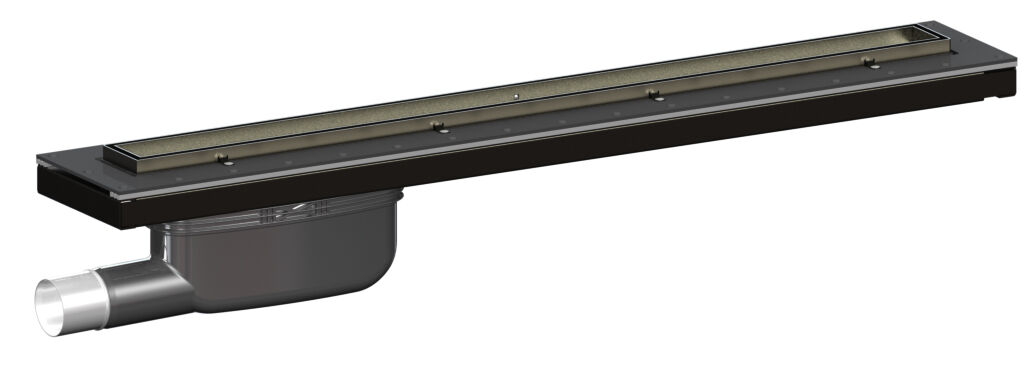

The Purus Line Living 600 is a complete floor drain with a Tile Insert grate and gable 50 mm outlet floor drain. It can be installed in wooden or concrete joists. The Purus Line Living linear drain for tiled floor finishes comes with a removable NOOD water trap, stainless steel Tile Insert grate and frame, 50 mm to 1½” UK adapter for solvent welding and installation kits for both wooden joists and concrete joists. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain.

The Purus Line Living 600 is a complete floor drain with a Tile Insert grate and gable 50 mm outlet floor drain. It can be installed in wooden or concrete joists. The Purus Line Living linear drain for tiled floor finishes comes with a removable NOOD water trap, stainless steel Tile Insert grate and frame, 50 mm to 1½" UK adapter for solvent welding and installation kits for both wooden joists and concrete joists. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain.
  • Delivered as a complete package with everything required for installation with tiles
  • NOOD water trap as standard
  • With Tile Insert grate
The Purus Line Living 800 is a complete floor drain with a Tile Insert grate and gable 50 mm outlet floor drain. It can be installed in wooden or concrete joists. The Purus Line Living linear drain for tiled floor finishes comes with a removable NOOD water trap, stainless steel Tile Insert grate and frame, 50 mm to 1½" UK adapter for solvent welding and installation kits for both wooden joists and concrete joists. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain.
  • Delivered as a complete package with everything required for installation with tiles
  • NOOD water trap as standard
  • With Tile Insert grate
Item Number
52738
Floor Construction
Concrete/Wood
Floor Covering
Tiles
Function
End outlet
Item Color
Grey
Material
PP, ABS, Stainless steel 1.4301
Outlet Dimension
Ø50 mm
Pressure Flow Temp
0,8 l/s
Size
600
Version
With frame and grating
Item Number
52744
Floor Construction
Concrete/Wood
Floor Covering
Tiles
Function
End outlet
Item Color
Grey
Material
PP, ABS, Stainless steel 1.4301
Outlet Dimension
Ø50 mm
Pressure Flow Temp
0,8 l/s
Size
800
Version
With frame and grating
