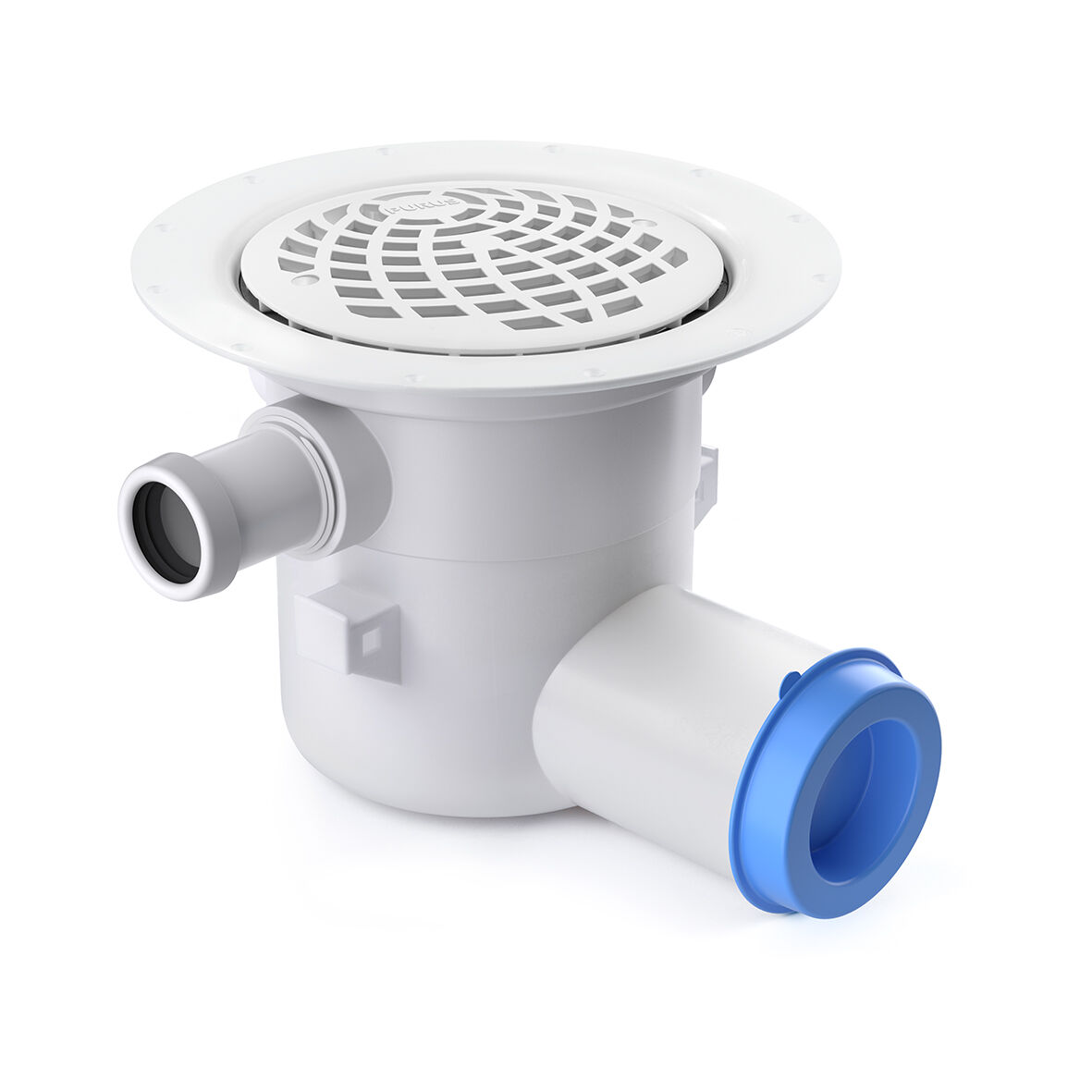

The Våge 75 Side floor drain has a 75mm side outlet and three extra inlets. Only one of the extra inlets should be used. The floor drain has a total height of 163mm and is suitable for installation in wooden or concrete joists. The Våge floor drain comes complete with a removable water trap with splash guard, clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain. When installing the Våge floor drain with the Purus Plate (2014 model), the extension ring should not be used.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- Floor drain with 3 extra inlets
- The Våge comes complete with an automatic clamping ring, water trap and grating
- Removable water trap for easy cleaning
- The automatic clamping ring means that no o-ring or loose screws need to be used during installation
- The grating is designed to prevent any residual water from pooling
Item Number
7113598
Floor Construction
Concrete/Wood
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Side outlet
Item Color
White
Material
PP
Outlet Dimension
Ø75 mm
Pressure Flow Temp
1,4 l/s
Size
Ø150 mm
Version
With extra inlet
