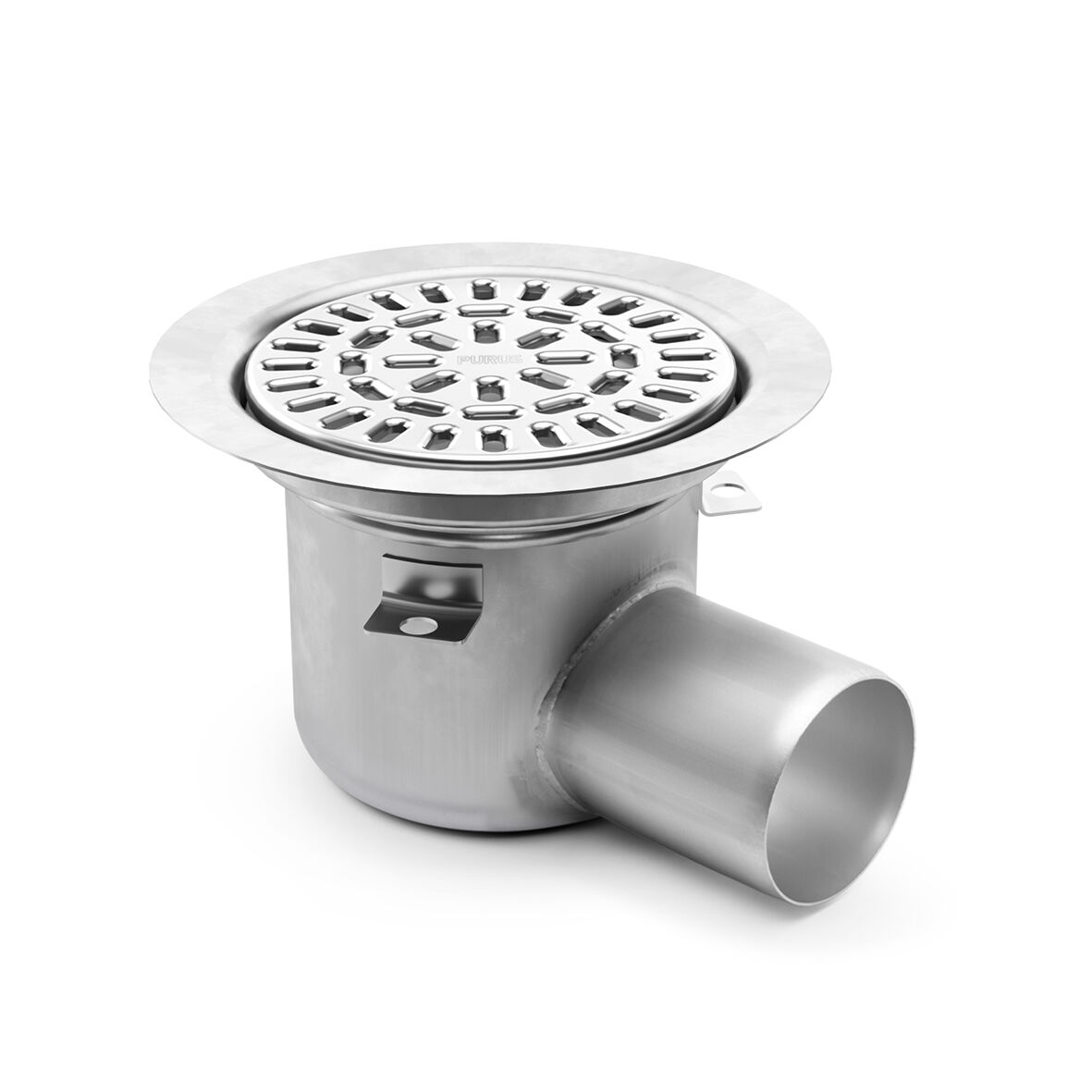

Floor drain Sigyn NOOD 75 R side

The Sigyn 75 R floor drain has a 75mm side outlet and is for installation in wooden or concrete joists. The Sigyn floor drain comes complete with a removable stainless steel NOOD water trap, clamping ring and stainless steel grate. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain. The floor drain also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.

The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.

The Sigyn 75 R floor drain has a 75mm side outlet and is for installation in wooden or concrete joists. The Sigyn floor drain comes complete with a removable stainless steel NOOD water trap, clamping ring and stainless steel grate. The NOOD water trap is a mechanical trap which closes when there is no water present, thus preventing any foul air from escaping through the drain. The floor drain also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.

The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
  • High resistance to chemicals
  • Corrosion resistant
  • Recyclable
  • High strength
Item Number
7152480
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Side outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404, PP
Outlet Dimension
Ø75 mm
Pressure Flow Temp
0,8 l/s
Size
150
Surface
Cold rolled (2B)
Version
With NOOD water trap
Maintenance Instructions
Type approval
