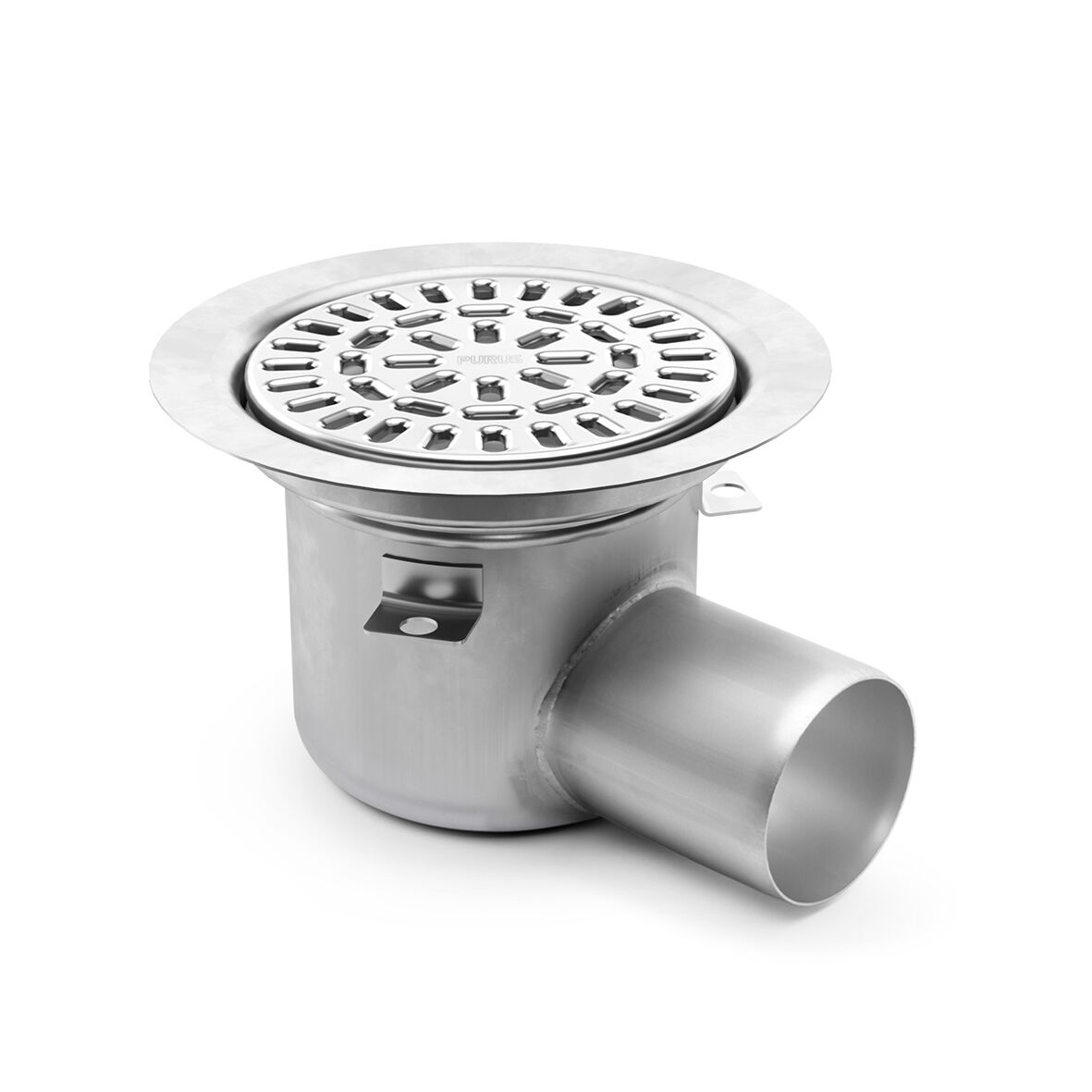

Floor drain Sigyn 75 R side

The Sigyn 75 floor drain has a 75mm side outlet and is suitable for installation in wooden or concrete joists. The Sigyn floor drain comes with a stainless steel water trap, clamping ring and stainless steel grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.

The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.

The Sigyn 75 floor drain has a 75mm side outlet and is suitable for installation in wooden or concrete joists. The Sigyn floor drain comes with a stainless steel water trap, clamping ring and stainless steel grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.

The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
  • High resistance to chemicals
  • Corrosion resistant
  • Recyclable
  • High strength
  • Withstand rats/animals
Item Number
7118085
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Side outlet
Item Color
Stainless
Material
Acid-resistant stainless steel 1.4404
Outlet Dimension
Ø75 mm
Pressure Flow Temp
1,0 l/s
Size
150
Surface
Cold rolled (2B)
Version
With stainless steel grating
