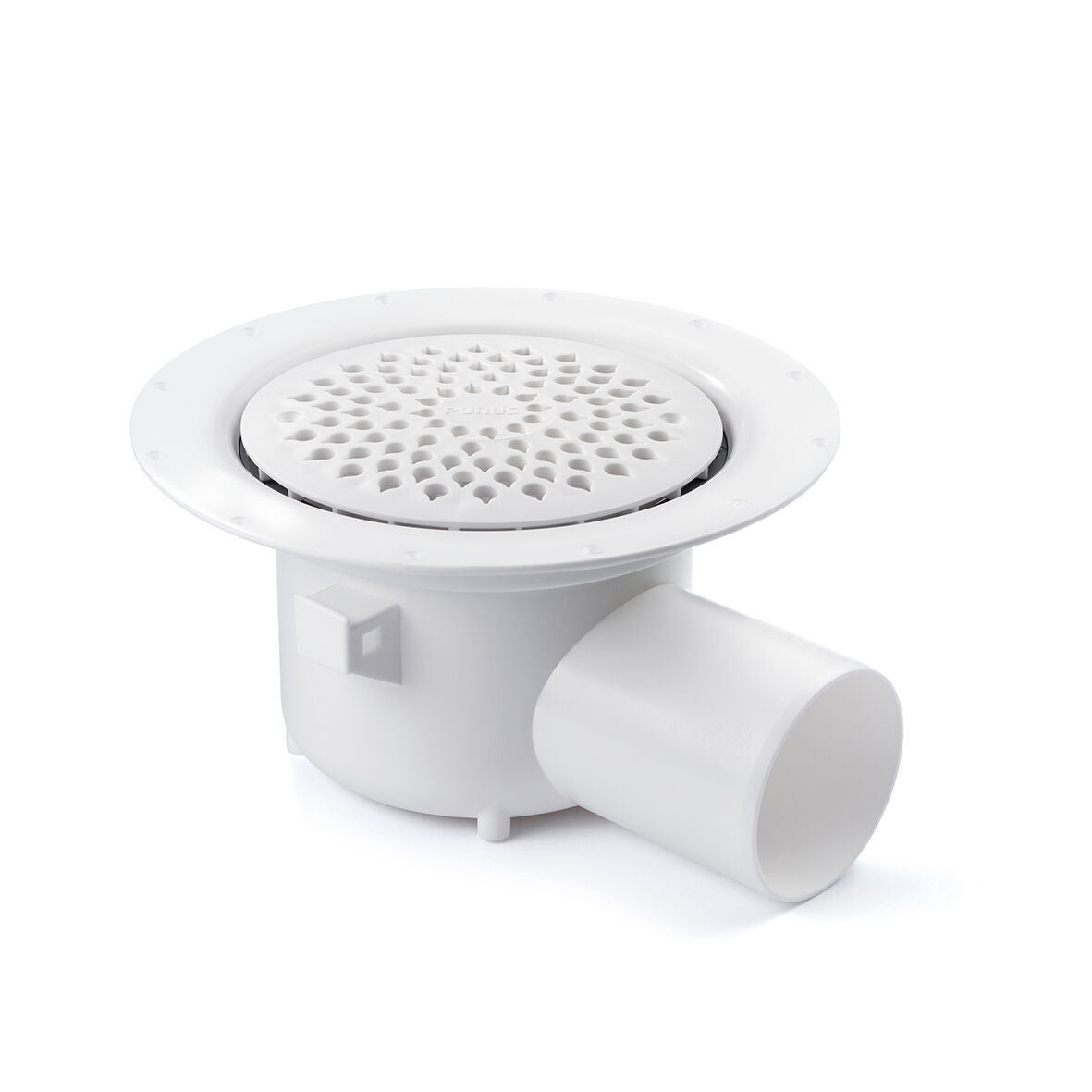

Floor drain Oden 75 side

The Oden 75 Side floor drain has a 75mm side outlet and is for installation in wooden or concrete joists. The Oden floor drain comes complete with a removable water trap, clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.

The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.

The Oden 75 Side floor drain has a 75mm side outlet and is for installation in wooden or concrete joists. The Oden floor drain comes complete with a removable water trap, clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.

The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
  • Smooth base to the floor drain which prevents dirt from accumulating
  • The floor drain comes complete with an automatic clamping ring, water trap and grating
  • Removable and divisible water trap for easy cleaning
  • The automatic clamping ring means that no o-ring or loose screws need to be used during installation
  • The grating is designed to prevent any residual water from pooling
Item Number
7113522
Floor Construction
Concrete/Wood
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Side outlet
Item Color
White
Material
PP
Outlet Dimension
Ø75 mm
Pressure Flow Temp
1,0 l/s
Size
Ø150 mm
Version
With plastic grating
