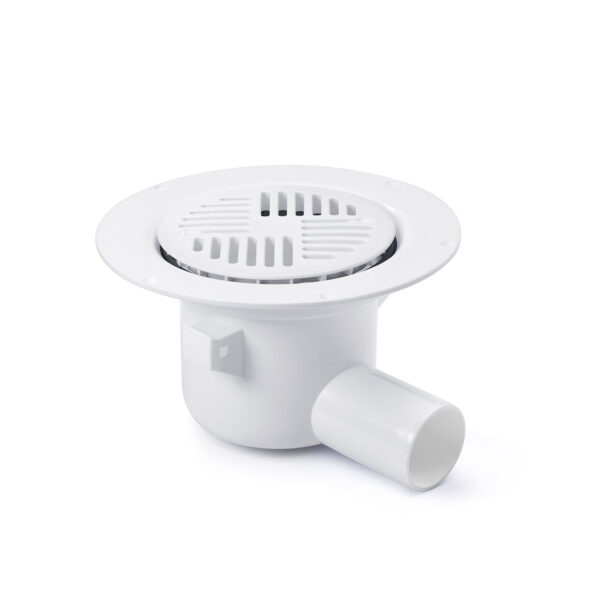

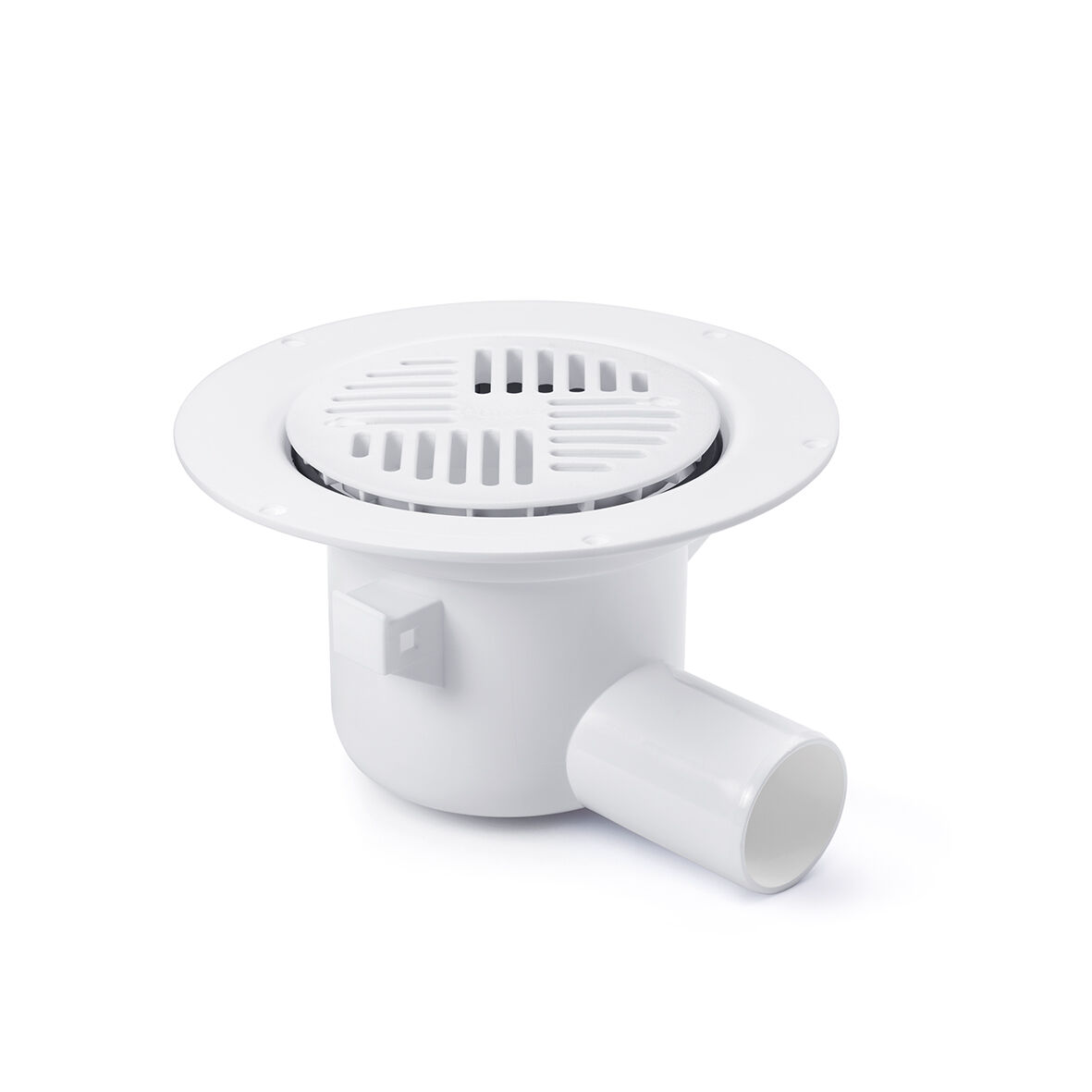

Floor drain Mini Oden 50 side

The Mini Oden 50 floor drain has a 50 mm side outlet and is suitable for installation in wooden or concrete joists. The Mini Oden floor drain comes complete with a removable water trap, clamping ring and plastic grate.

The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.

The Mini Oden 50 floor drain has a 50 mm side outlet and is suitable for installation in wooden or concrete joists. The Mini Oden floor drain comes complete with a removable water trap, clamping ring and plastic grate.

The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
  • Mini Series are Purus floor drains with a 130mm grate diameter
  • The floor drain comes complete with an automatic clamping ring, water trap and grating
  • Removable water trap for easy cleaning
  • The automatic clamping ring means that no o-ring or loose screws need to be used during installation
  • The grating is designed to prevent pooling around the drain
Item Number
7113535
Floor Construction
Concrete/Wood
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Side outlet
Item Color
White
Material
PP
Outlet Dimension
Ø50 mm
Pressure Flow Temp
0,8 l/s
Size
Ø130 mm
Version
With plastic grating
