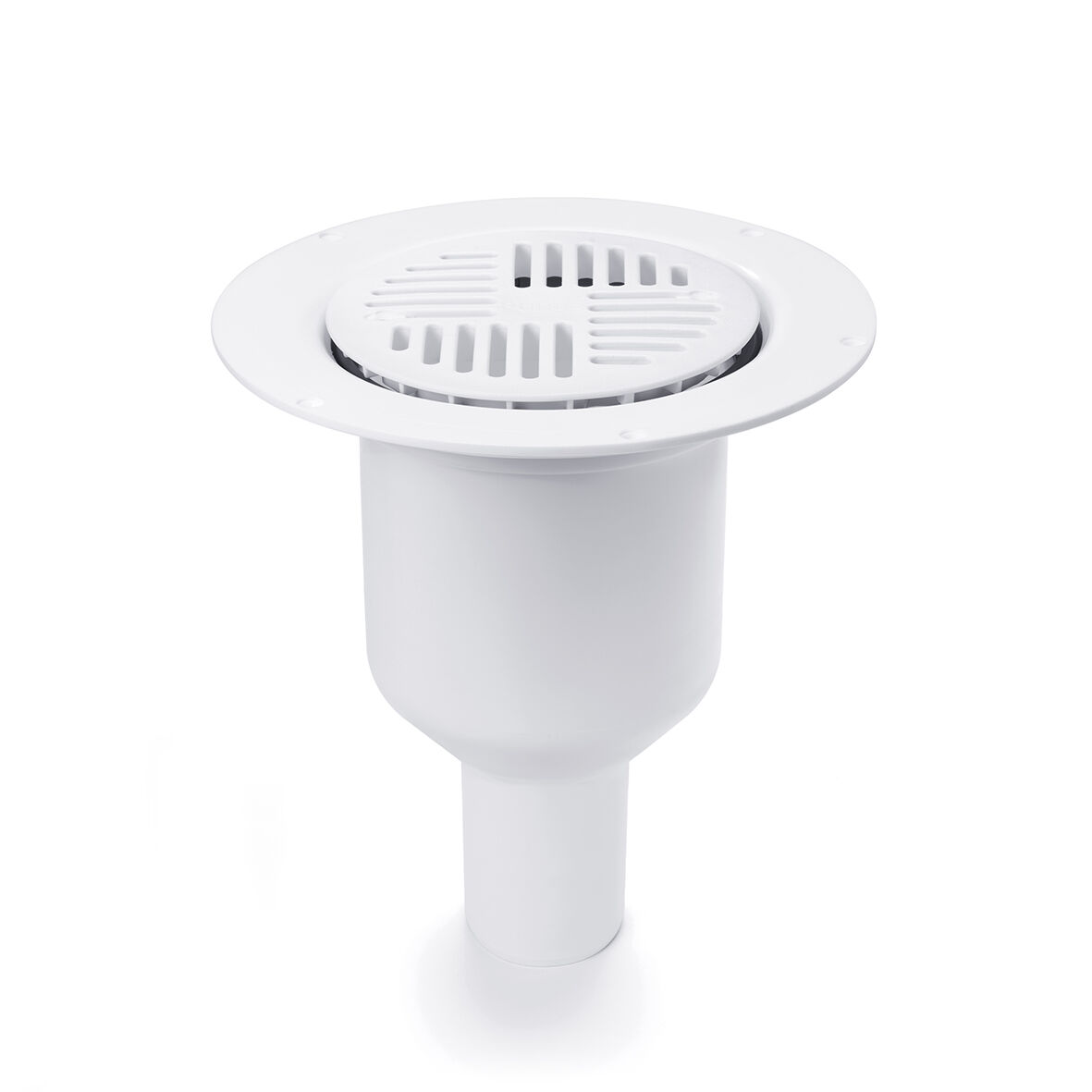

The Mini Brage 50 floor drain has a 50 mm vertical outlet and is suitable for installation in wooden or concrete joists. The Mini Brage 50 floor drain comes complete with a removable water trap, clamping ring and plastic grate.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- Mini Series are Purus floor drains with a 130mm grate diameter
- The floor drain comes complete with an automatic clamping ring, water trap and grating
- Removable water trap for easy cleaning
- The automatic clamping ring means that no o-ring or loose screws need to be used during installation
- The grating is designed to prevent pooling around the drain
Item Number
7113539
Floor Construction
Concrete/Wood
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Bottom outlet
Item Color
White
Material
PP
Outlet Dimension
Ø50 mm
Pressure Flow Temp
0,8 l/s
Size
Ø130 mm
Version
With plastic grating
