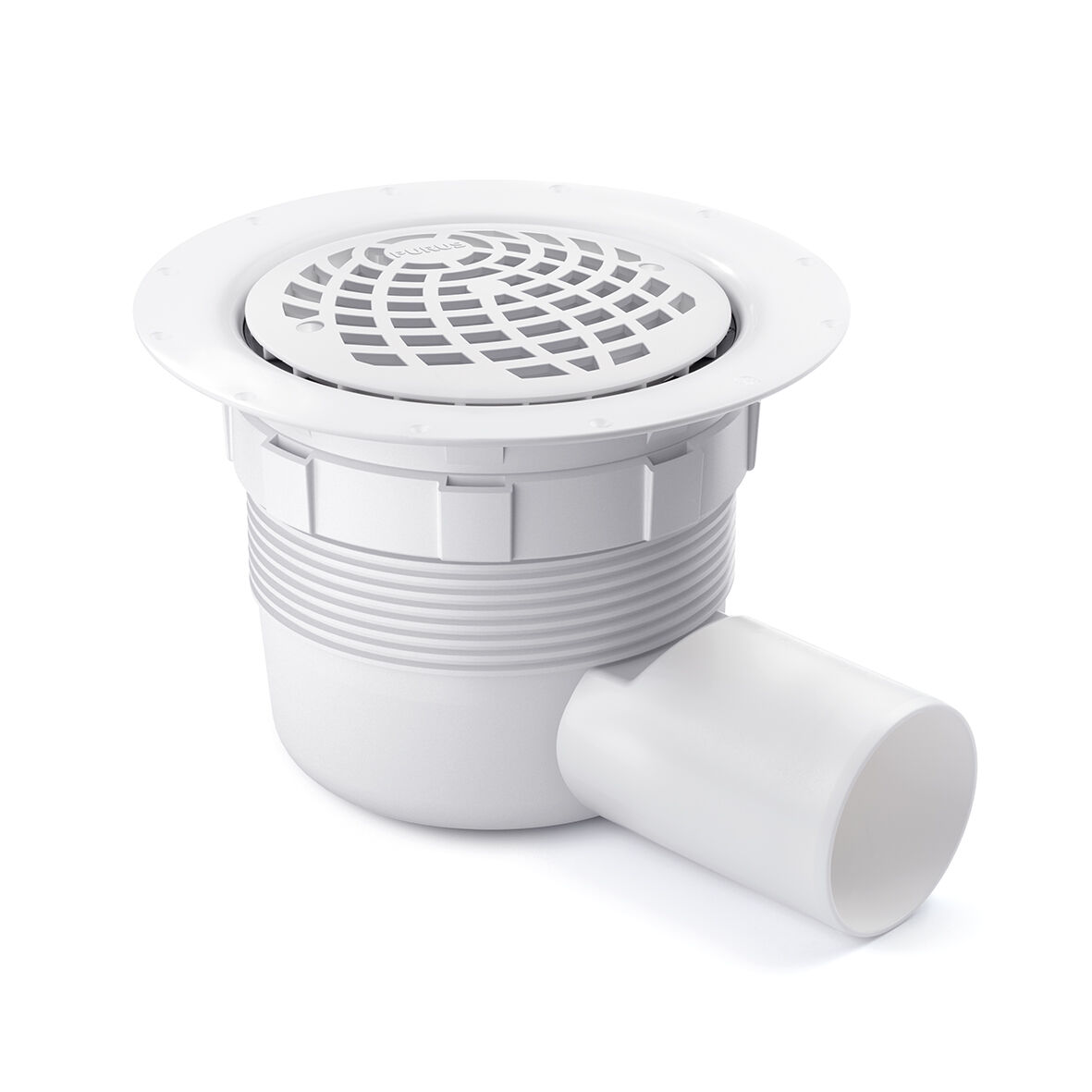

The Flex 75 Side floor drain has a 75mm side outlet and the floor drain can be cut to adjust the overall height. To reduce the height, unscrew the flange, cut the ribbed part of the floor drain body to the desired size and then return the o-ring. The floor drain is suitable for installation in wooden or concrete joists. The Flex floor drain comes complete with a removable water trap, clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- Can be cut for adaptation to the desired installation height
- The floor drain comes complete with an automatic clamping ring, water trap and grating
- Removable and divisible water trap for easy cleaning
- The grating is designed to prevent any residual water from pooling
Item Number
7113591
Floor Construction
Concrete/Wood
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Side outlet
Item Color
White
Material
PP
Outlet Dimension
Ø75 mm
Pressure Flow Temp
1,0 l/s
Size
Ø150 mm
Version
With plastic grating
