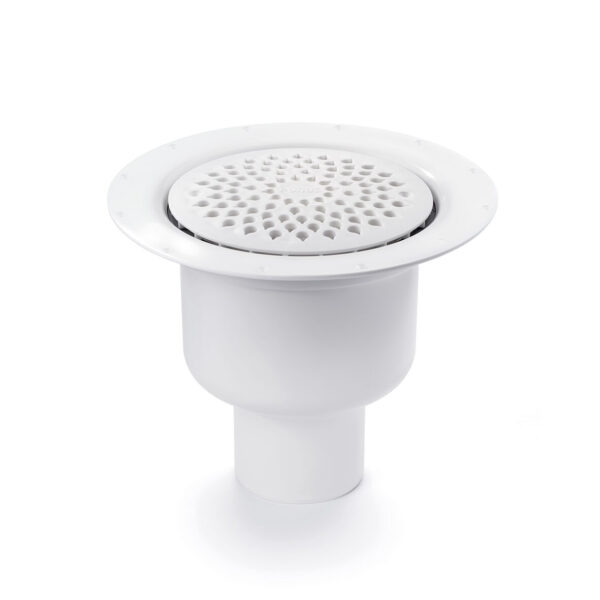

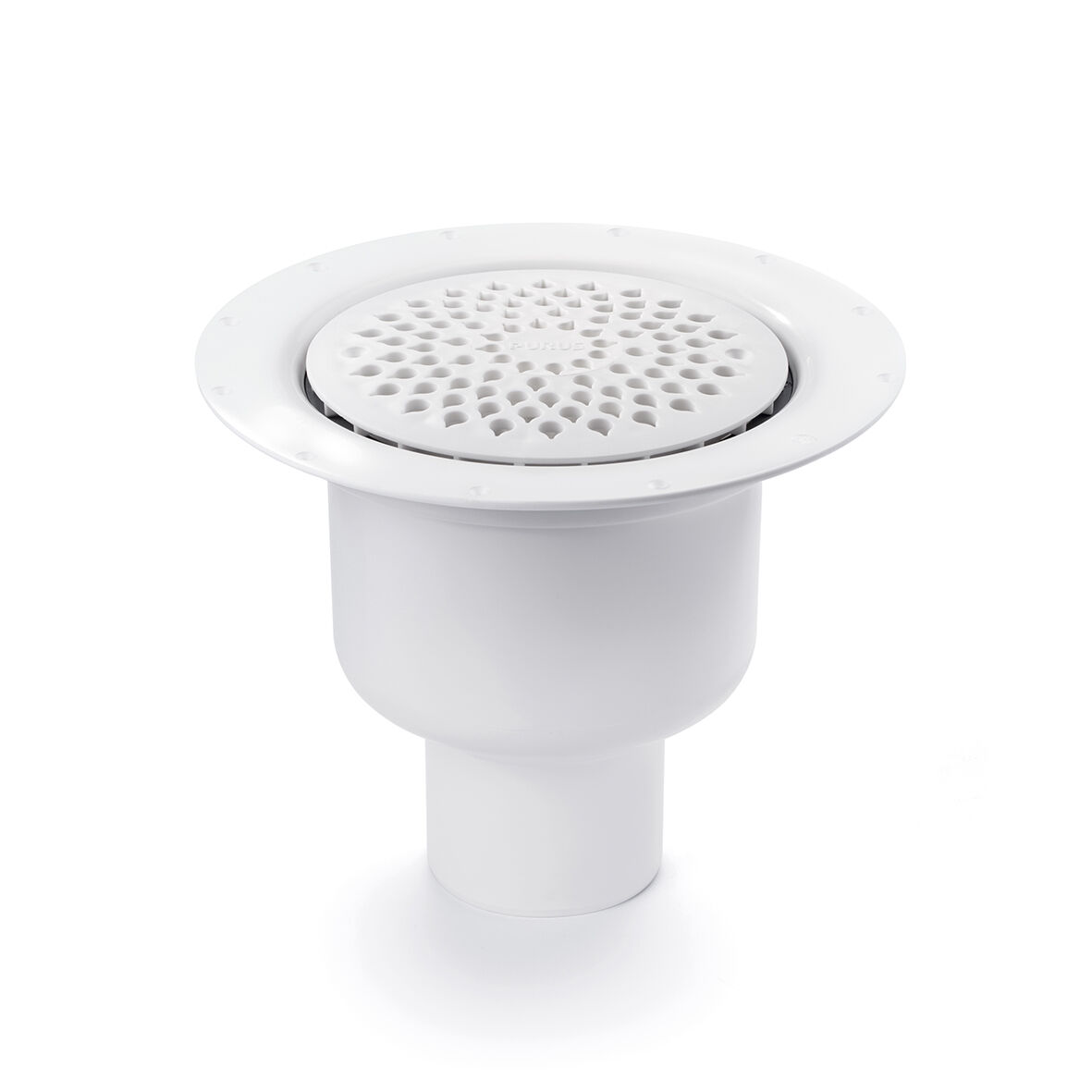

The Brage 75 KM Vertical floor drain has a short 75mm vertical outlet and is for installation in wooden or concrete joists. The Brage floor drain comes complete with a removable water trap, clamping ring and plastic grate. It also comes with a protective cover that is intended to prevent any concrete or debris from installation from entering the drain.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
The automatic clamping ring is used for both sealing membrane and vinyl flooring. It is a self-adjusting clamping ring for vinyl flooring with a thickness of 1,5 mm to 2 mm.
- The floor drain comes complete with an automatic clamping ring, NOOD water trap and grating
- Removable NOOD water trap for easy cleaning
- The automatic clamping ring means that no o-ring or loose screws need to be used during installation
- The grating is designed to prevent any residual water from pooling
Item Number
7113929
Floor Construction
Concrete/Wood
Floor Covering
Concrete/Resin/Tiles/Vinyl
Function
Bottom outlet
Item Color
White
Material
PEH
Outlet Dimension
Ø75 mm
Pressure Flow Temp
1,1 l/s
Size
Ø150 mm
Version
Short model
