Gullies for vinyl flooring

resilient design for frequent use

THE NEXT GENERATION OF DESIGN GULLIES FOR VINYL FLOORING

Vinyl flooring can be both beautiful and practical. The Purusline Living Plus gives you a stylish linear design solution with a high flow rate, making it ideal for environments such as gyms and healthcare facilities, as well as domestic wetrooms.

Established collaborations with Europe’s leading vinyl flooring manufacturers place us at the forefront of developing and delivering the most innovative solutions. Our ambition is to continue to offer the best design floor gullies for vinyl flooring in Europe.

“Our ambition is to continue to offer the best design floor gullies for vinyl flooring in Europe.”

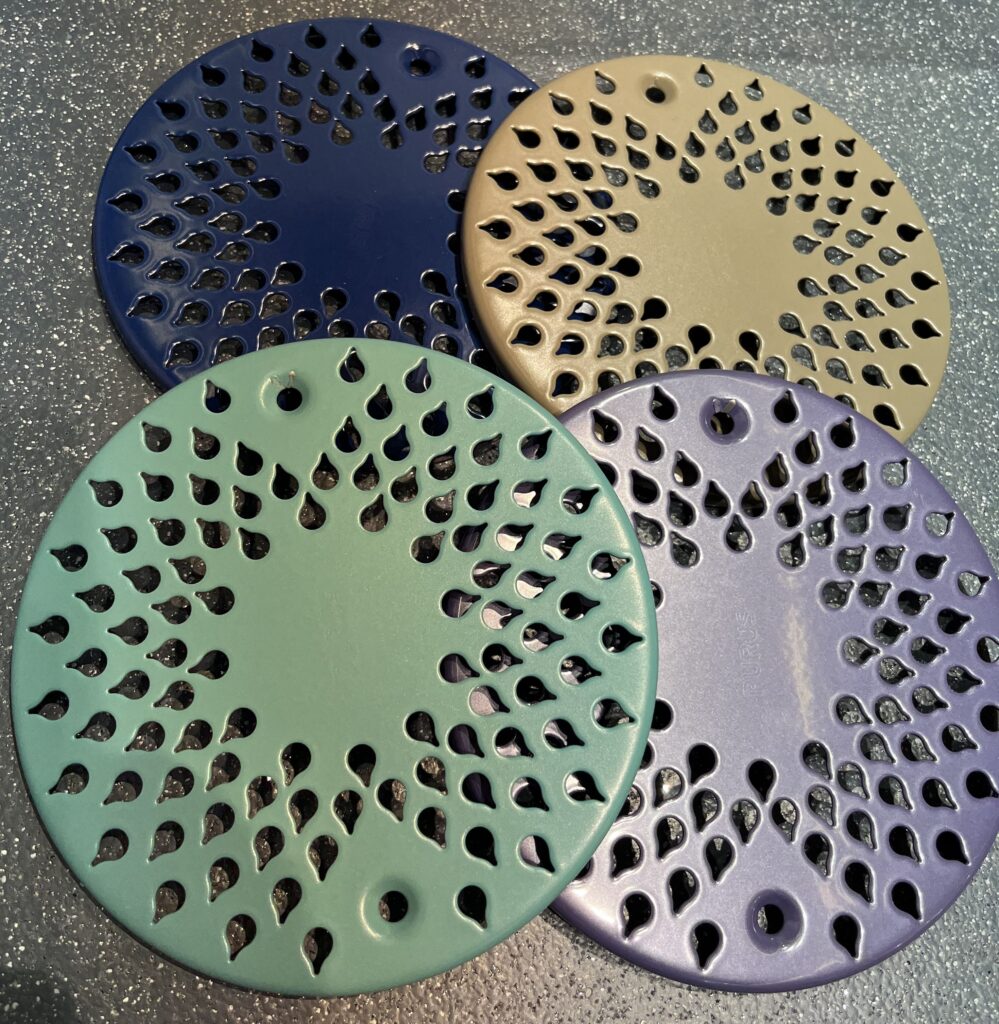

Skip standard grates with limited edition options

Our coloured grates are treated using PVD (Physical Vapour Deposition) technology, giving a highly durable surface and a long lifespan.

experienced market leader from the nordics

We are proud to have our own manufacturing facilities in Sweden, which gives us full control over quality and delivery reliability. We have become the market leader in the Nordics thanks to extensive experience, cutting-edge expertise in technology and manufacturing, and production resources with high manufacturing capacity in plastic and stainless steel.

Quality is one of our core goals, and it dictates our choice of materials and manufacturing. This goal is prioritised alongside a constant focus for our production units to minimise material waste and ensure that waste is recycled.

We can offer bespoke manufacturing upon request. Feel free to challenge us!

GRATES IN RECYCLED GREY OR BLACK PLASTIC OR CLASSIC WHITE?

linear shower drains

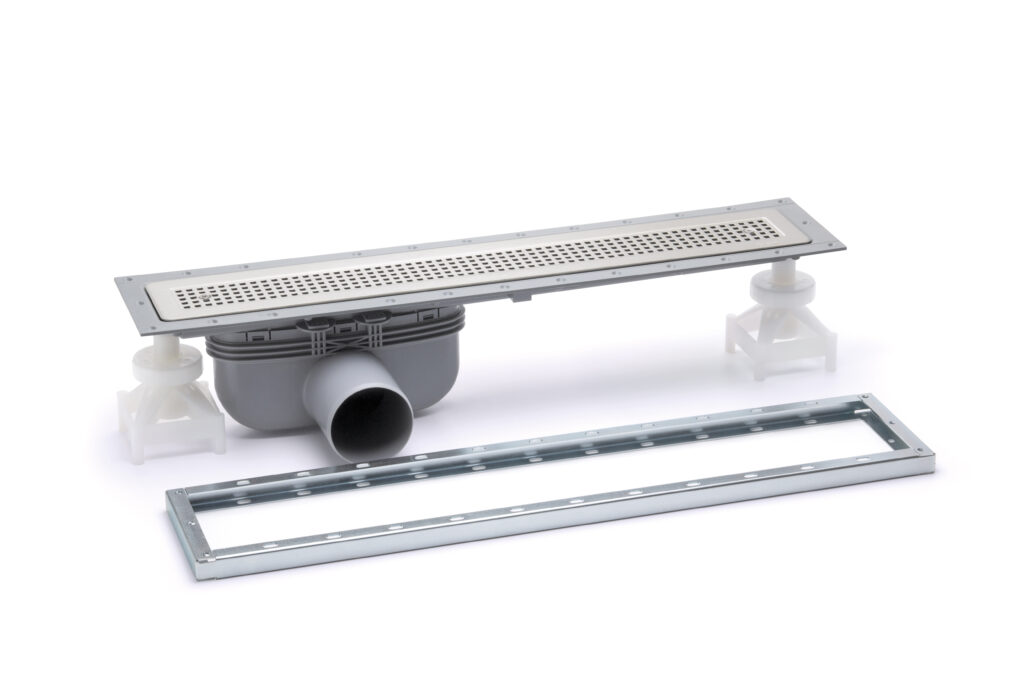

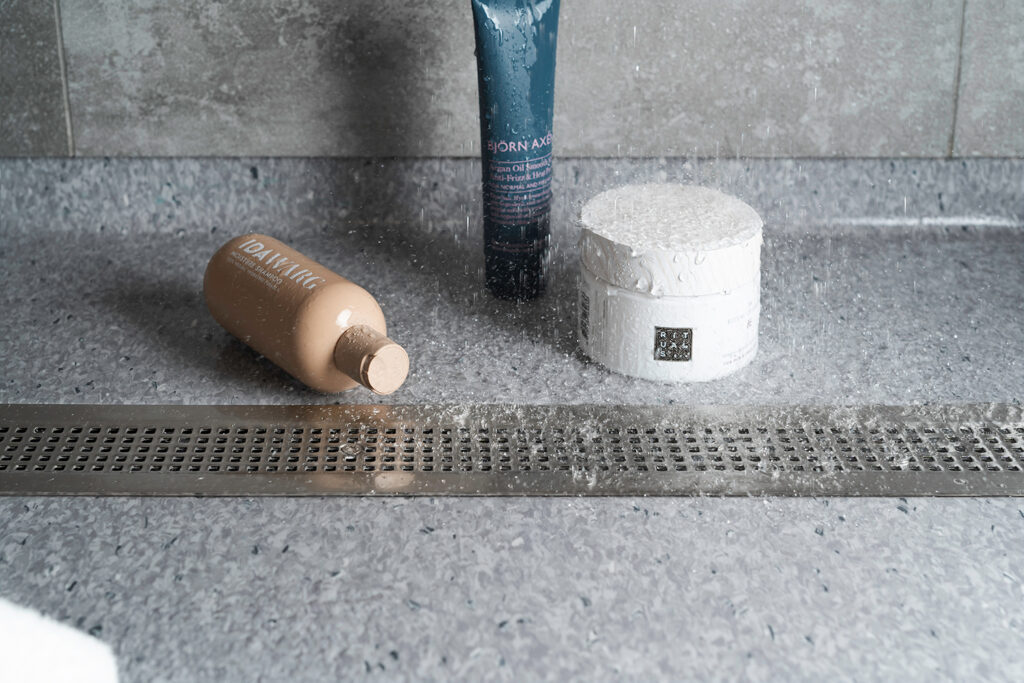

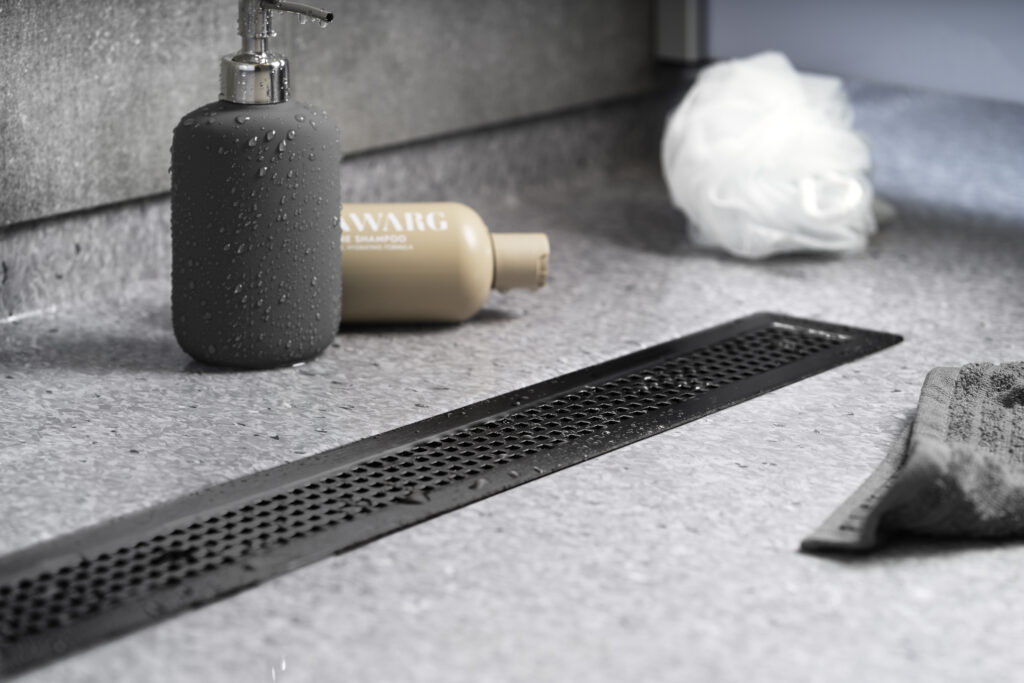

Bring your own decor style into the bathroom with our linear design floor gullies. The Purusline Living Plus is an easy-to-clean, wear-resistant and stylish solution. The screwed clamping frame in 2mm stainless steel provides a secure, waterproof connection. The grate is secured with screws, and has softly rounded corners with no sharp edges; features appreciated in healthcare and domestic environments alike.

The Purusline Living Plus comes with a removable NOOD no-odour water trap, stainless steel clamping ring, stainless steel patterned Chess grate and a concrete installation kit. Please note that the Purusline Living Plus, in accordance with building regulations in some markets, must be installed at least 200mm from the wall. Check the applicable regulations for where the installation is to take place.

Choose from a 50mm low, side or side side (inline) outlet. The stainless steel grates are available in various colours and lengths of 600, 700, 800, 900 and 1000mm.

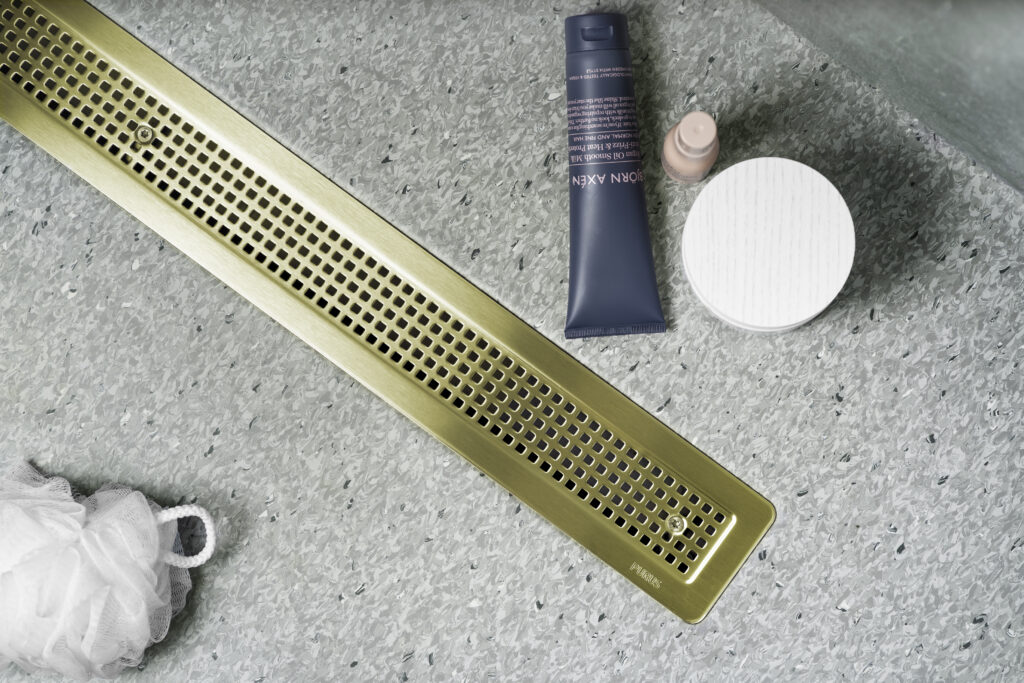

Purusline Living Plus

traditional floor GULLIES 130MM

From our wide assortment you can be sure to find a gully that suits the requirements for your next project. We have a complete range of floor gullies for many different applications. All are designed to create a secure connection to the waterproof membrane and floor finish (vinyl, tile, resin or microcement), and are hygienic and easy to clean with high flow rates.

We always strive to facilitate the installer’s work to ensure an optimal end result. For example, our proven automatic clamping ring is quick and easy to install and secures to the waterproof membrane. We also have gullies with a screwed stainless steel clamping ring which can handle vinyl flooring up to 3mm thick.

Ensure a proper fit between the gully and the waterproof membrane by using the Purus Knife to cut the hole.

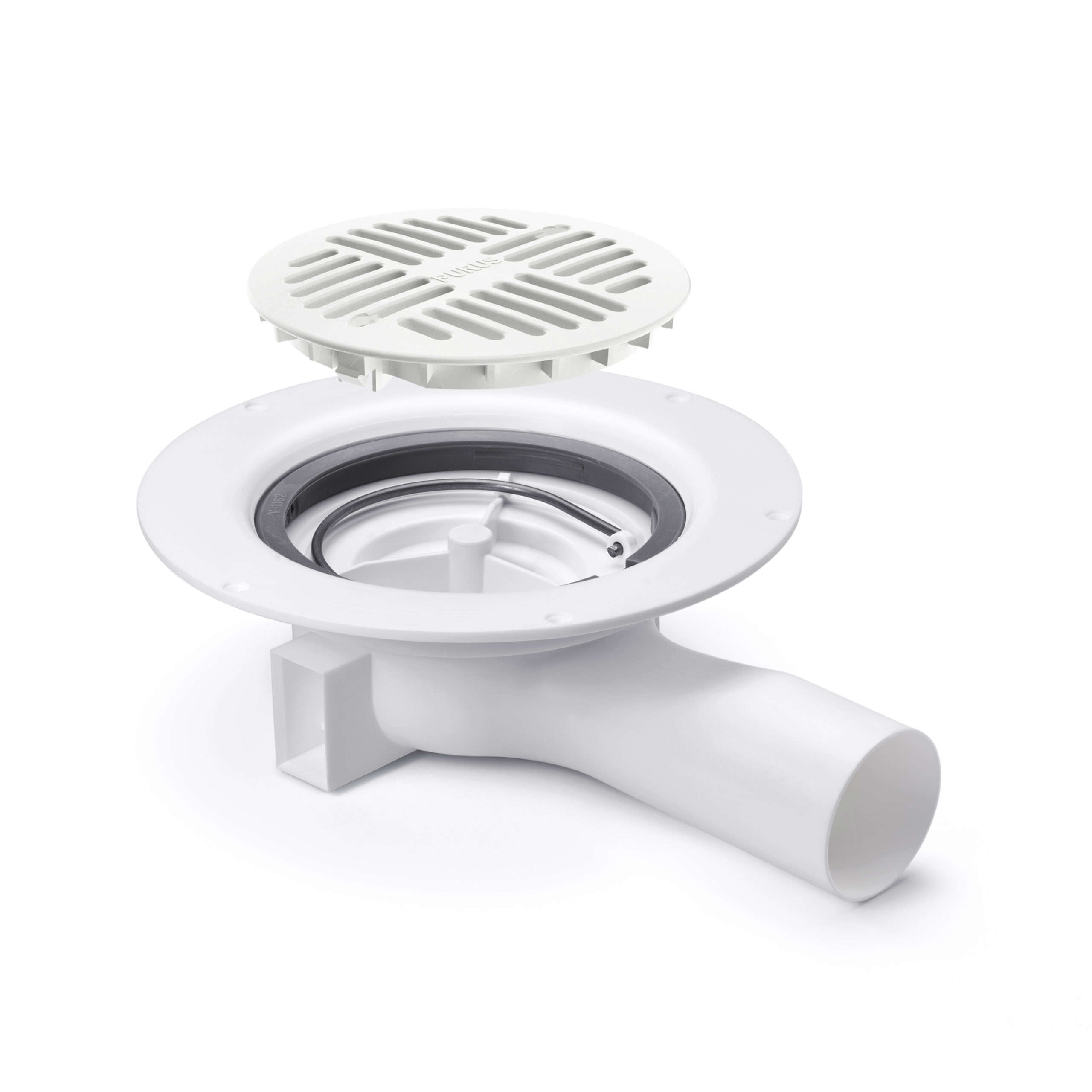

7113764UK Minimax 50

Accessories and spare parts

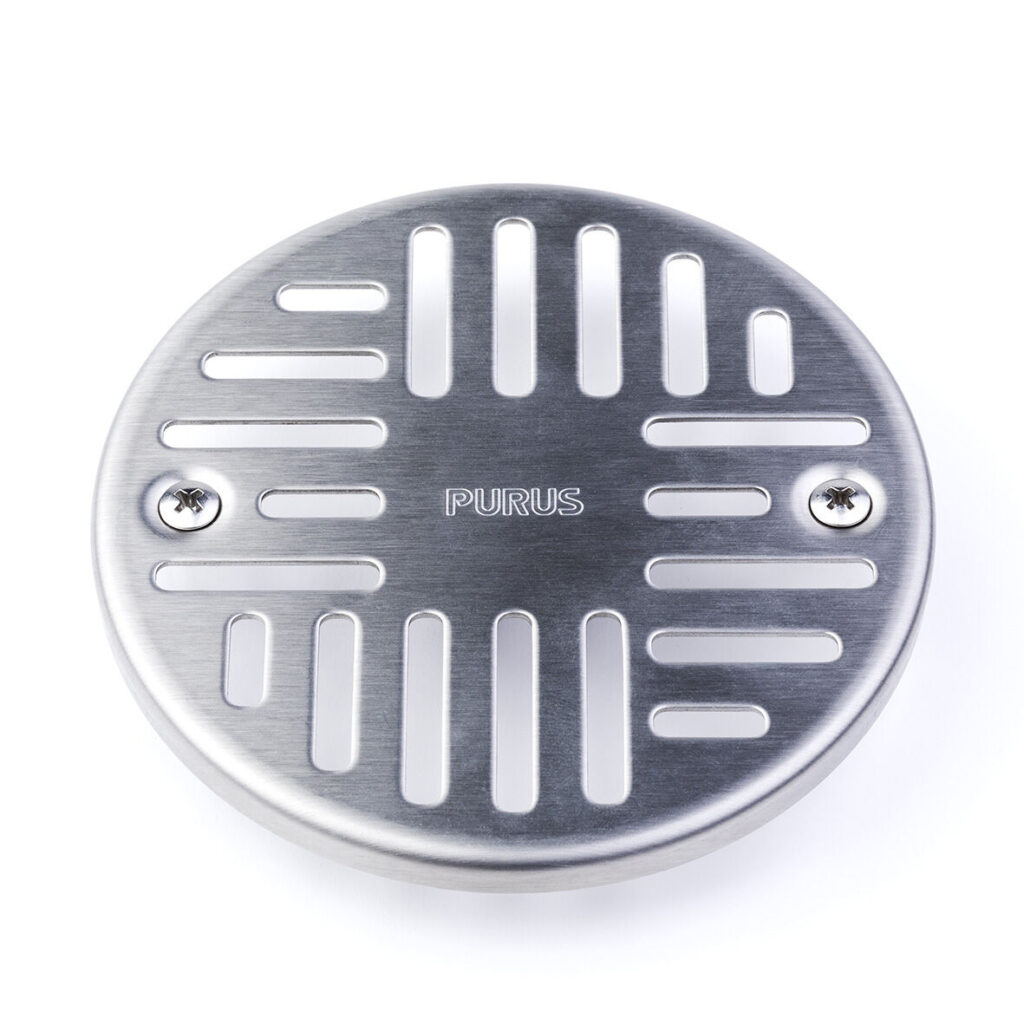

Golvbrunnssil Art Deco 130 rostfri med låsanordning
Stainless steel grates

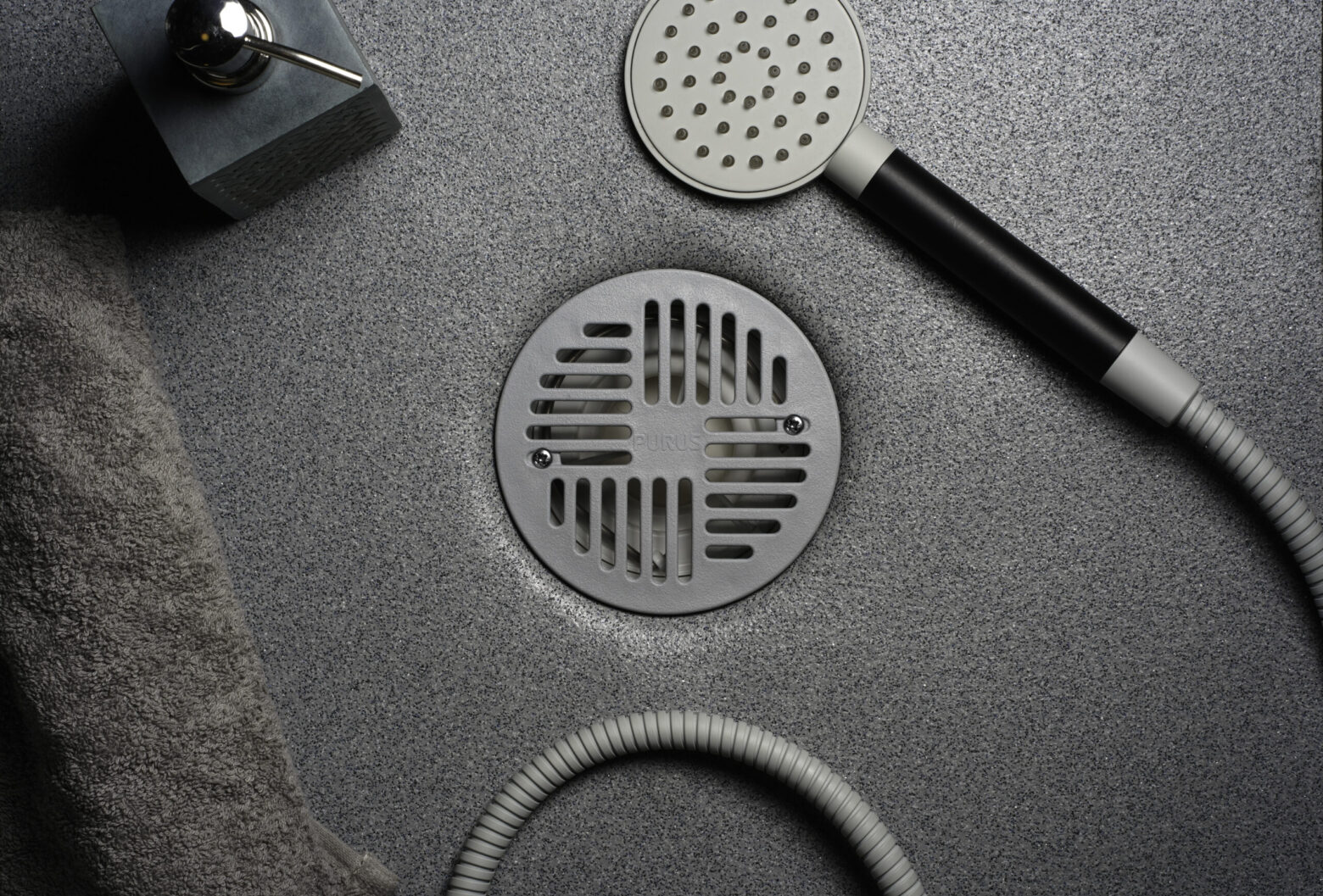

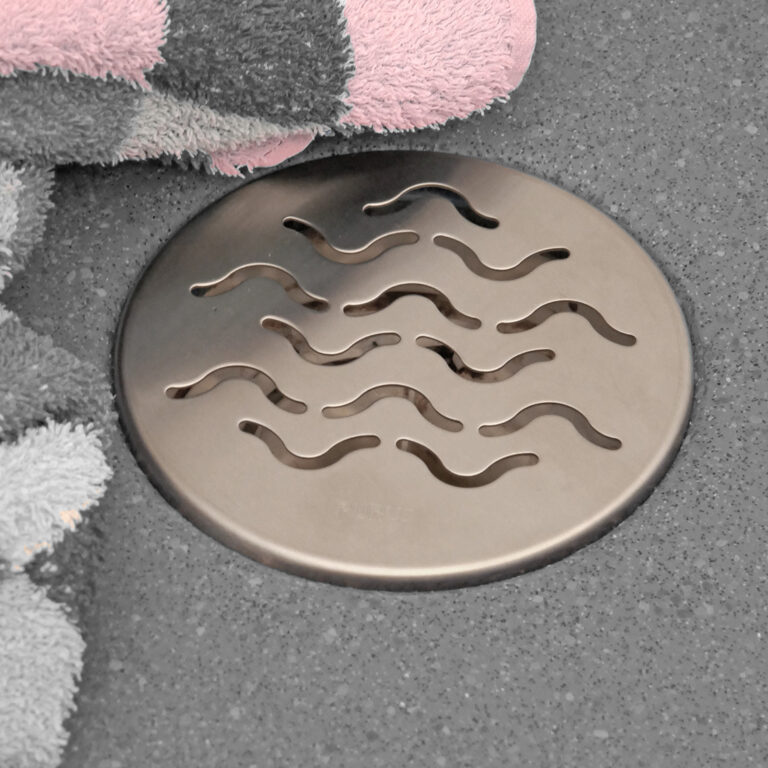

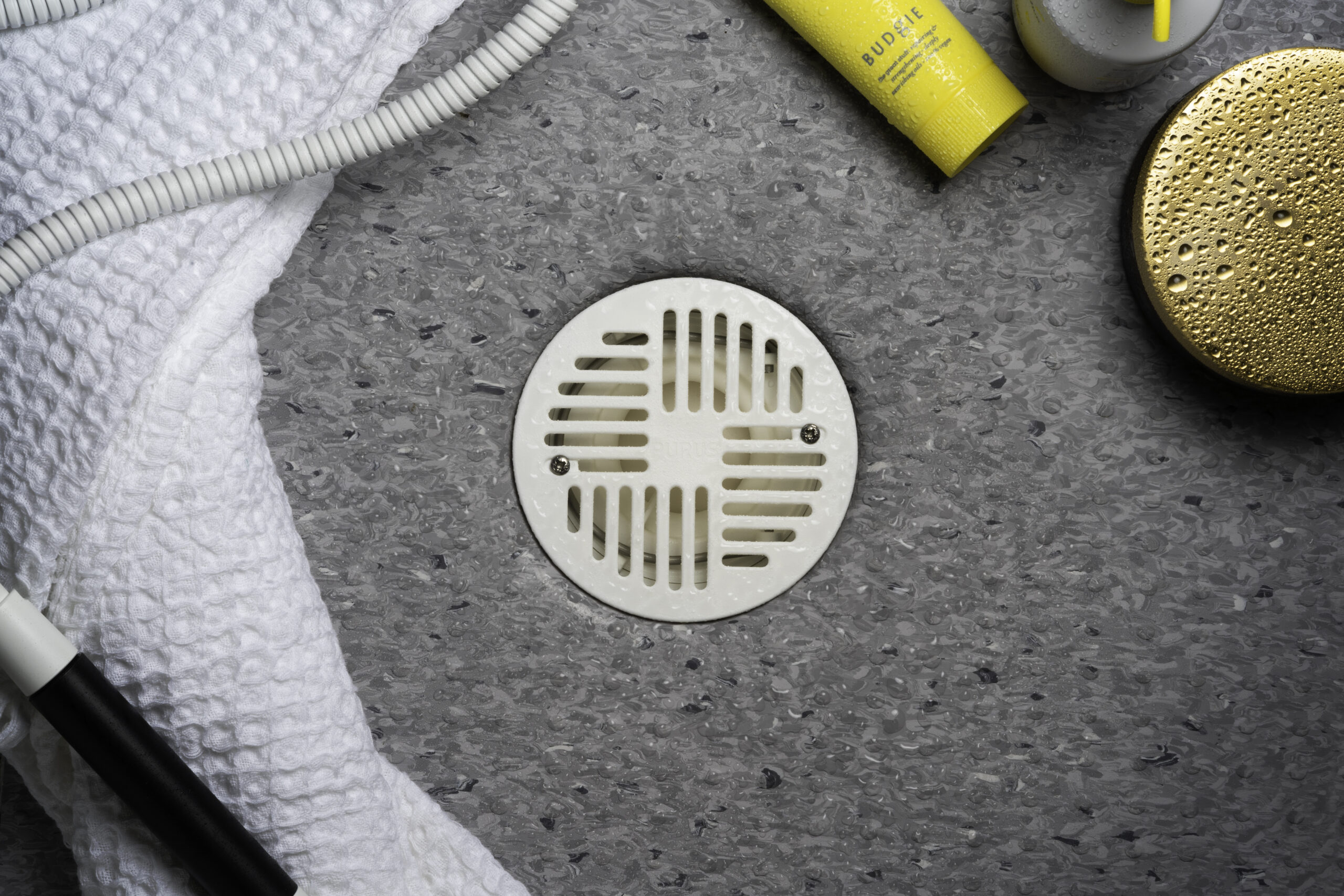

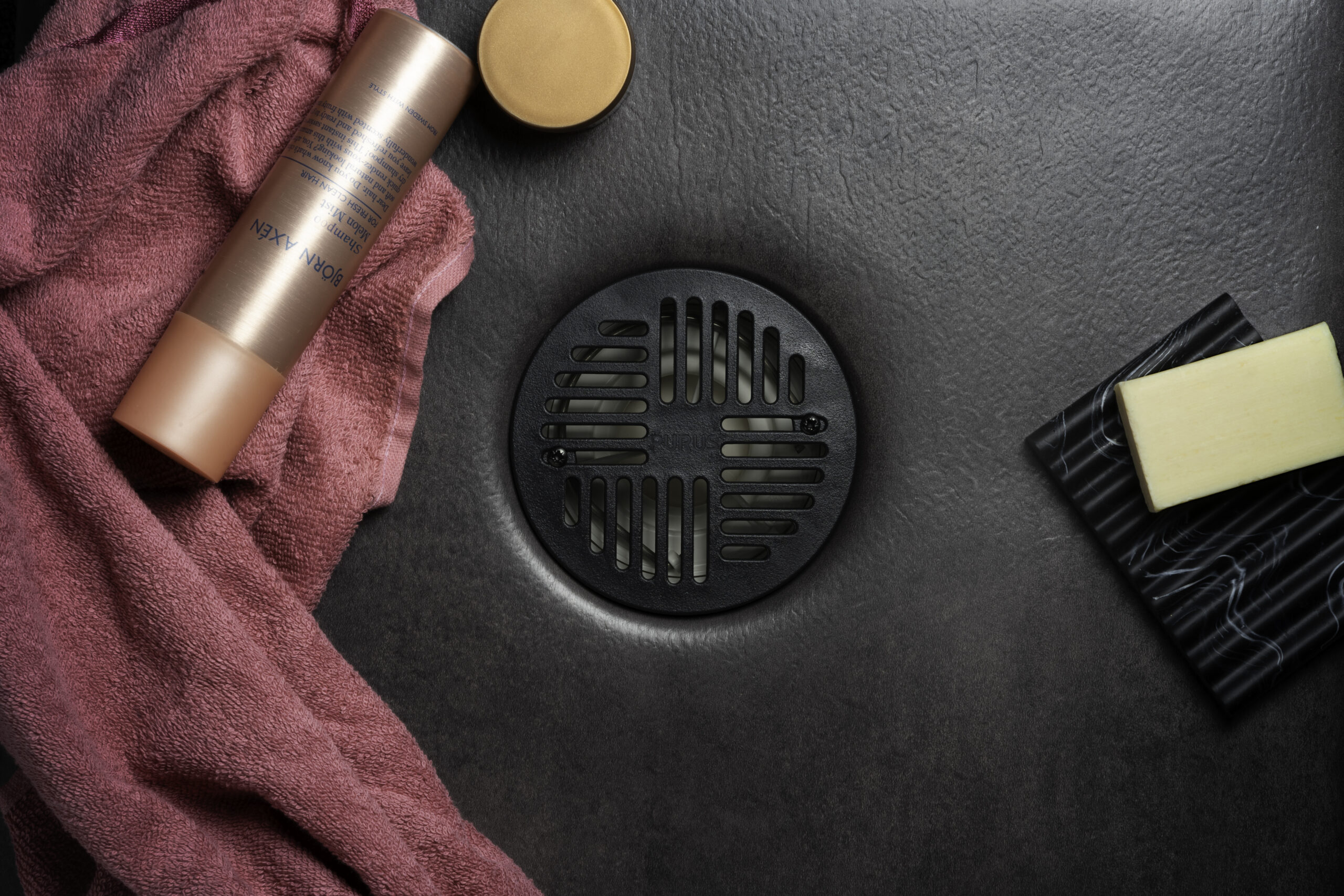

A range of lockable stainless steel grates can be paired with our 130mm diameter floor gullies for vinyl flooring. They replace the plastic grate which comes with the gully. The available designs are Drop, Art Deco and Wave.

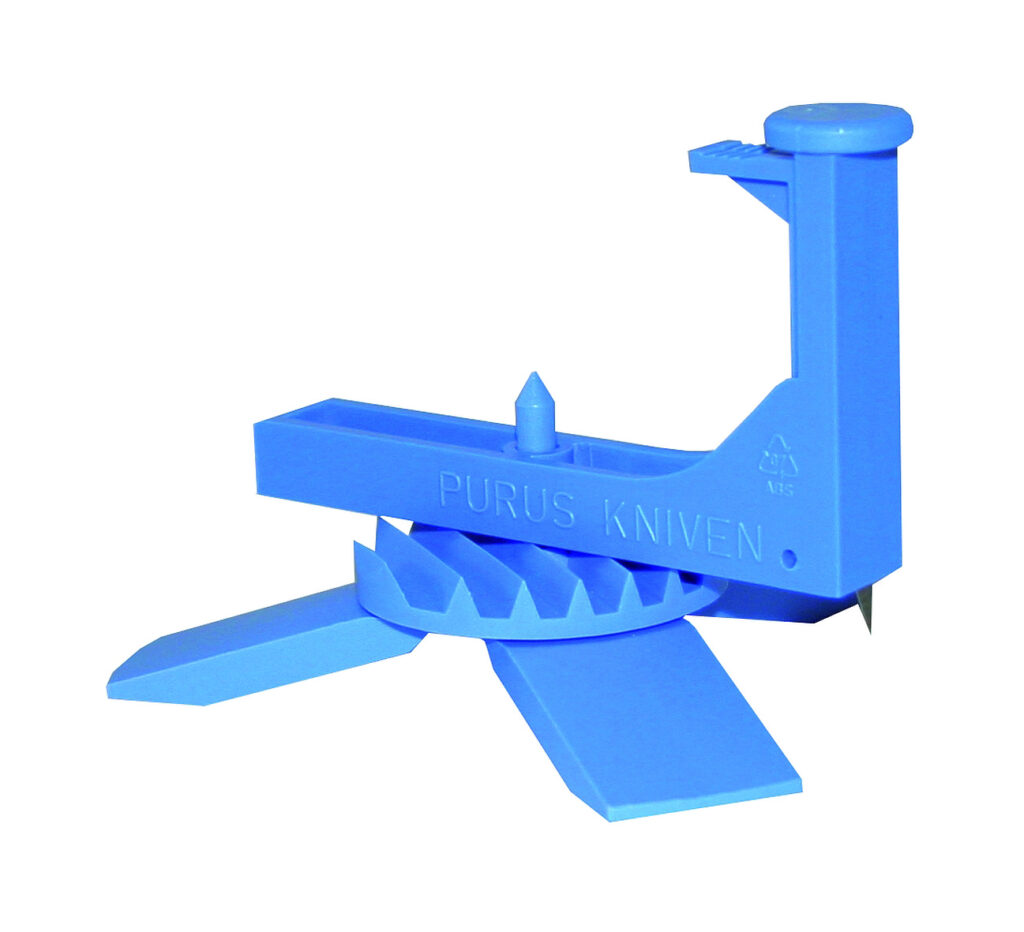

Purus knife
Purus Knife 130mm

The Purus Knife is a tool for cutting vinyl flooring and waterproof membranes within the perimeter of the floor gully. The 130mm diameter model suits floor gullies like the Minimax 50 and Mini Brage 50 & 110.

Vattenlås NOOD MiniMax
NOOD water trap for Minimax

Our NOOD no-odour water traps are designed to prevent foul air escaping through our drains. All gullies for vinyl flooring come complete with a NOOD trap, and replacements are available to buy separately if required.

59mm S-Series low-level floor gullies Ø150

The 59mm S-Series floor gully has a grate diameter of 150mm and a height of just 59mm, making it the ideal solution for vinyl floor installations where there are limitations to the concrete screed floor build-up height.

The stainless steel clamping ring is fitted using 6 screws to secure the vinyl in place, providing the best leakage protection. Despite its low level height, the 59mm S-Series maintains a good flow rate of 28l/m. It is hygienic, easy to clean and, like all Purus floor gullies, comes with a NOOD no-odour water trap.

The 59mm S-Series gully comes with a NOOD no-odour water trap and a screwed stainless steel clamping ring to fix the vinyl flooring.

Golvbrunn S-Serie MiniMax 50 sida
7110406UK 59mm S-Series

Industrial & commercial RANGE for high flows

Purus’ Channel 100 range, with a grate width of 100mm, is designed with industrial and commercial environments in mind. It is an ideal solution for many settings where vinyl flooring is often used, including gyms and sports centres, hospitals, health facilities and schools. The stainless steel channels have high flow rates for frequent use and grates which can be removed for cleaning.

The Channel 100 has a model specifically designed for vinyl flooring, complete with a stainless steel screwed clamping ring which creates a secure connection and provides the best leakage protection.

There are standard lengths of 600mm to 2,500mm, with a bespoke service available for longer lengths.

All Purus channels are made of acid-resistant stainless steel, quality EN 1.4404, as standard. After welding in stainless steel, the complete products (not just the weld joints) are pickled for increased durability.

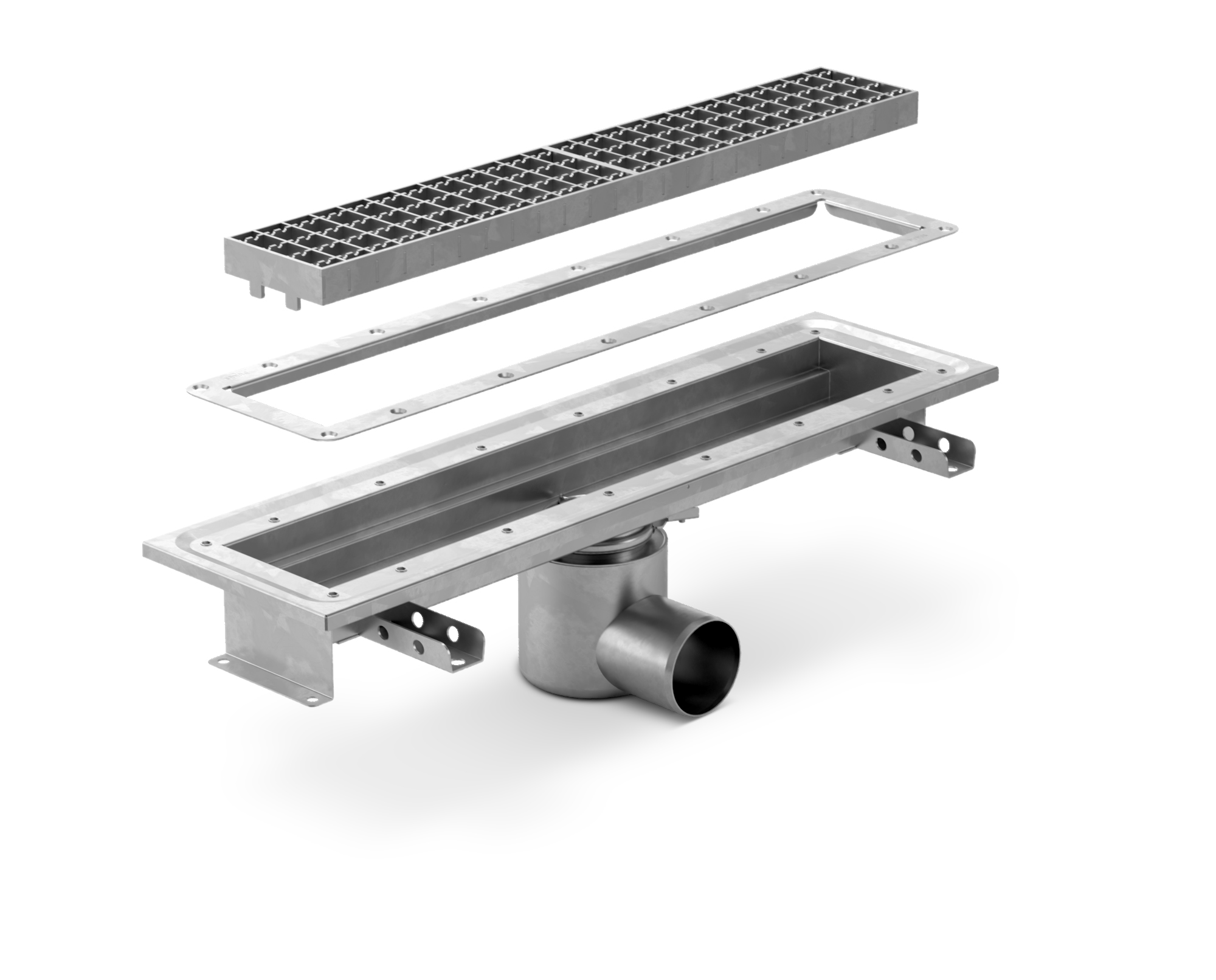

Purus Channel 100 for vinyl flooring

a choice of grates for the purus channel 100, to best meet your requirements

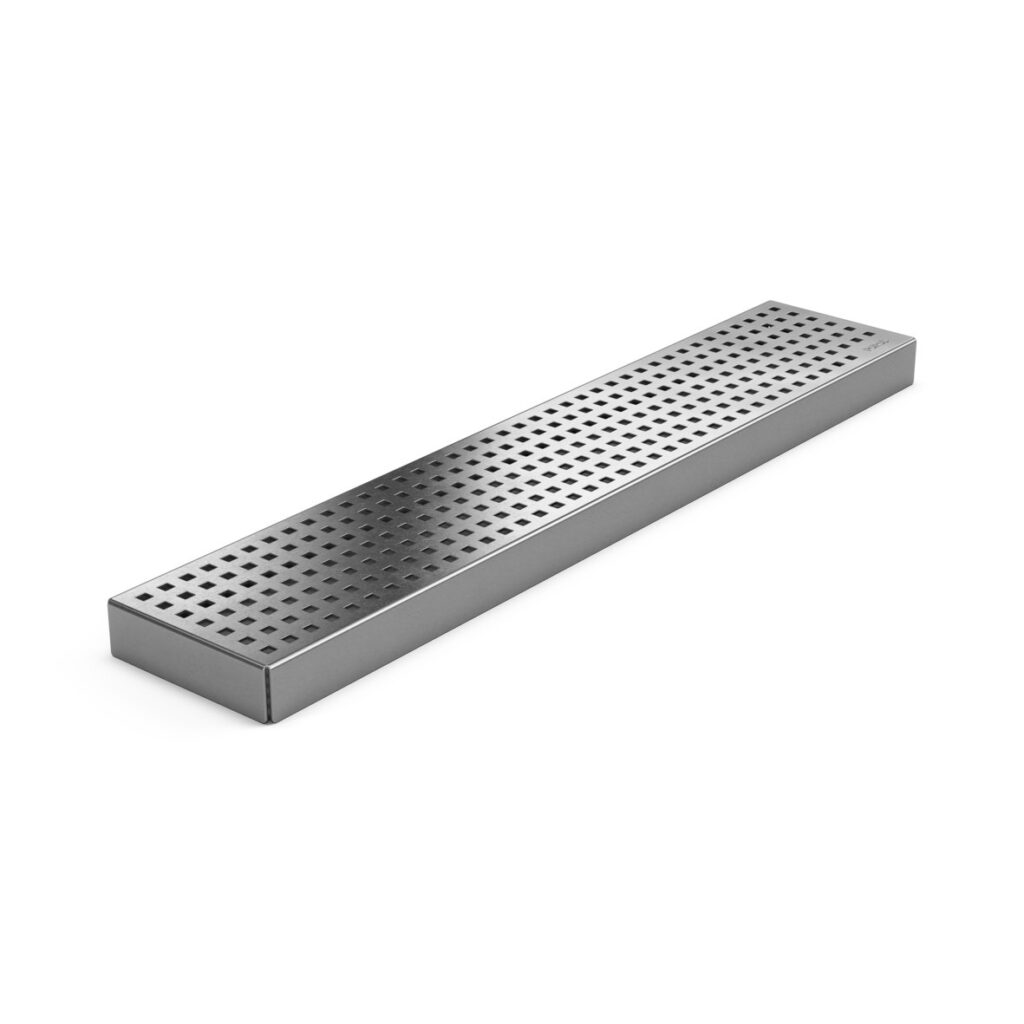

Grating Chess with load class K3 (300kg) for pedestrian traffic/barefoot friendly

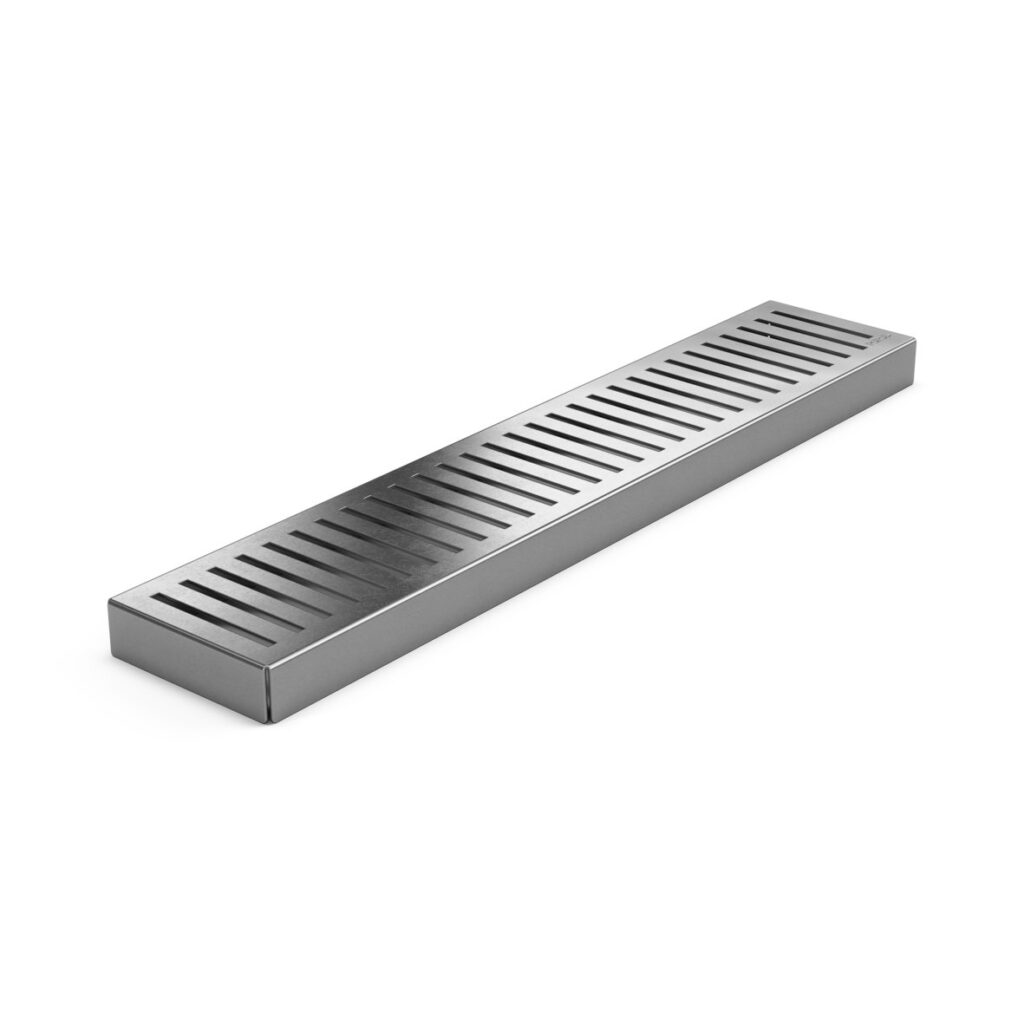

Rib grate with K3 (300kg) load class for pedestrian traffic/barefoot friendly

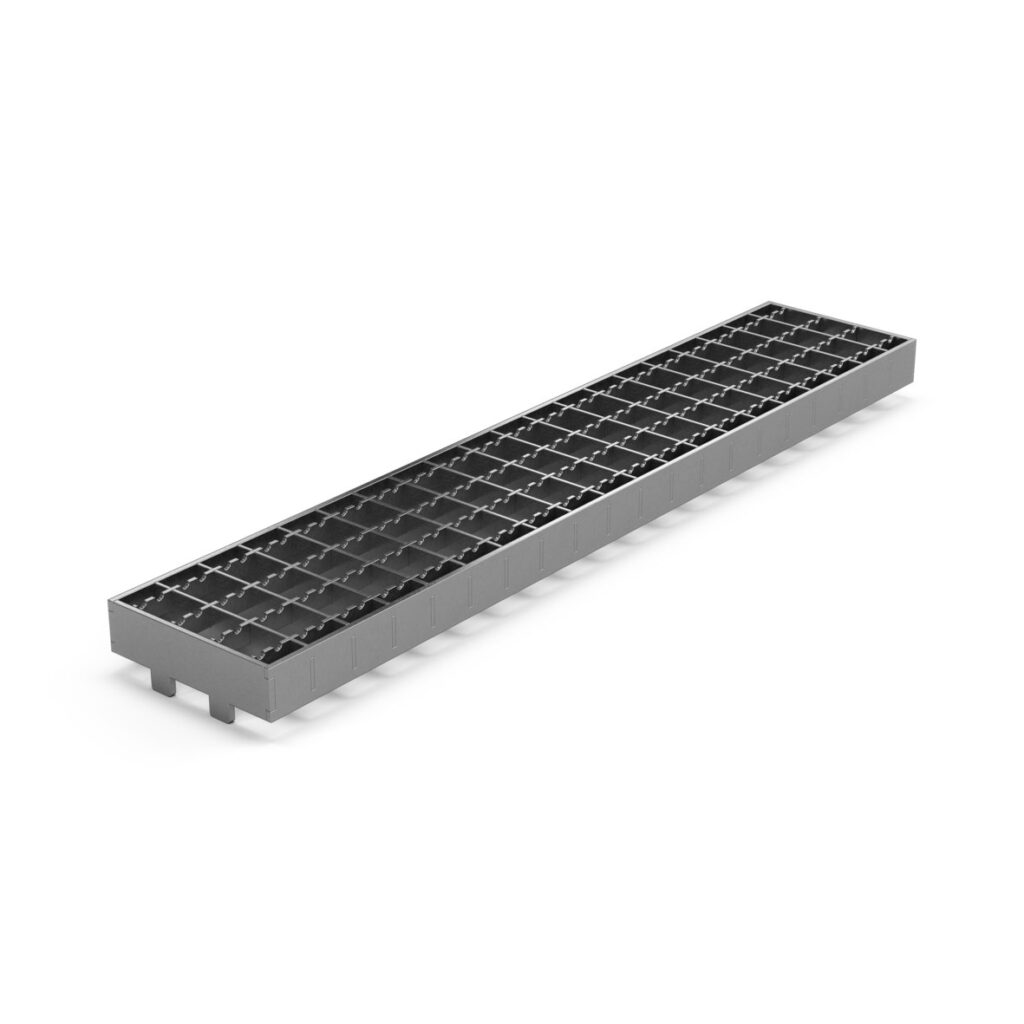

L15 Mesh grate for loads up to 1500kg, for lighter driving traffic

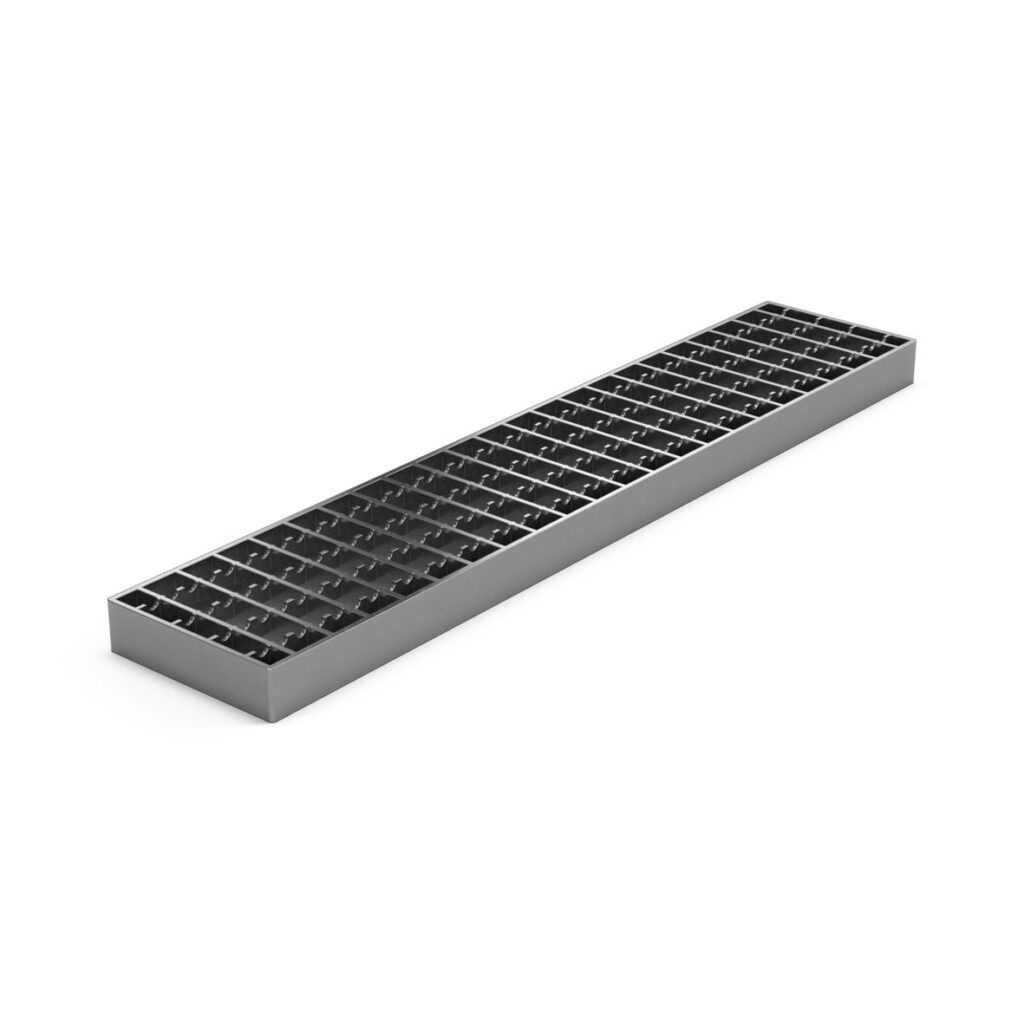

M125 Mesh grate for loads up to 12,500kg, for heavier traffic and trucks
